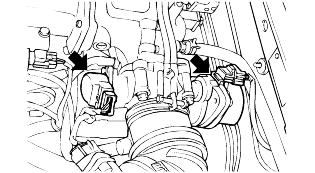

THROTTLE POSITION SENSOR (TPS)

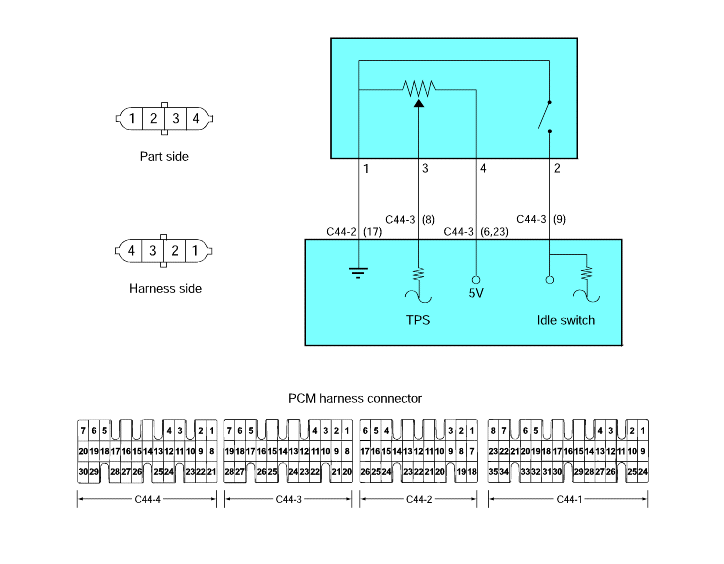

CIRCUIT DIAGRAM

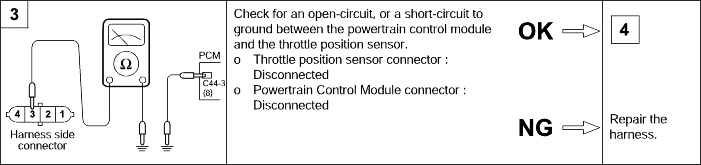

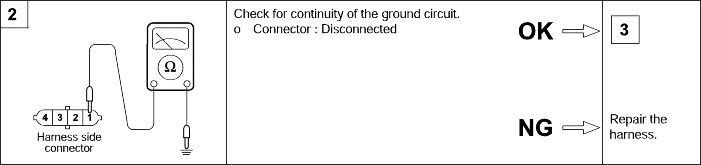

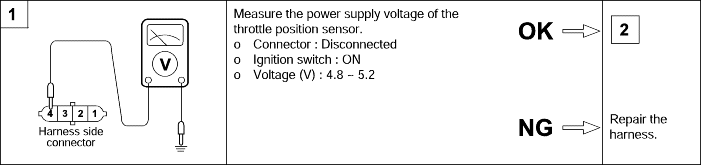

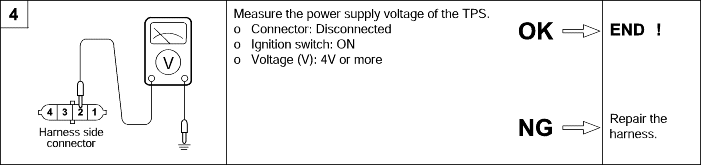

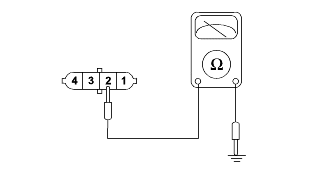

HARNESS INSPECTION PROCEDURES
TROUBLESHOOTING HINTS
SENSOR CHECKING
USING HI-SCAN (PRO)

Check item

Data display

Check conditions

Throttle valve

Test specification

Throttle position sensor

Sensor voltage

Ignition switch : ON

At idle position

300 ~ 900mV

Open slowly

Increases with valve opening

Open wide

4500 ~ 5000mV

1.

Disconnect the throttle position sensor connector.

2.

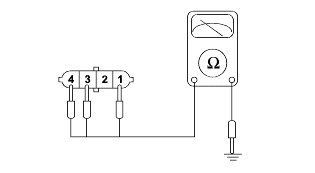

Measure resistance between terminal 1 (sensor ground) and terminal 4 (sensor power).

Standard value : 3.5 ~ 6.5 kΩ

3.

Connect a pointer type ohmmeter between terminal 1 (sensor ground) and terminal 3 (sensor output).

4.

Operate the throttle valve slowly from the idle position to the full open position and check that the resistance changes smoothly in proportionwith the throttle valve opening angle.

5.

If the resistance is out of specification, or fails to change smoothly, replace the throttle position sensor.

Tightening torque

TP Sensor : 1.5~2.5 Nm (15~25 kg·cm, 1.1~1.8 lb·ft)

SENSOR CHECKING (Idle switch)
Using HI-SCAN (PRO)

Check item

Data display

Check conditions

Throttle valve

Normal indication

Idle position switch

Service data item

Switch state

Ignition switch : ON (check by operating accelerator pedal repeatedly)

At idle position

ON

Open a little

OFF

1.

Disconnect the throttle position sensor connector.

2.

Check the continuity between terminal 3 and sensor ground.

TPS voltage

Continuity

Higher than 300~900mV

Non-conductive (∞Ω)

300~900mV

Conductive (0Ω)

3.

If out of specification, replace the throttle position sensor.
