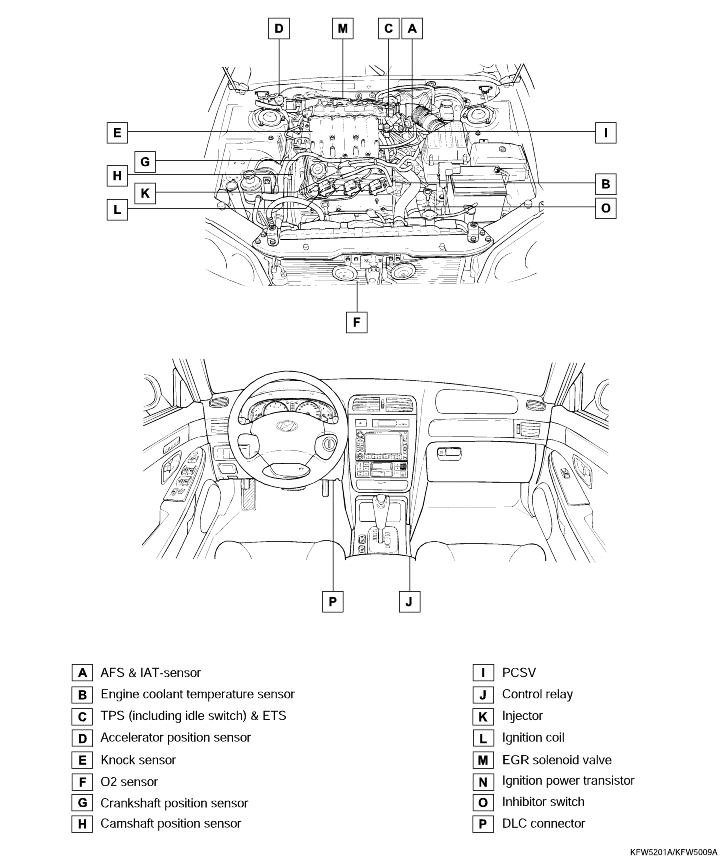

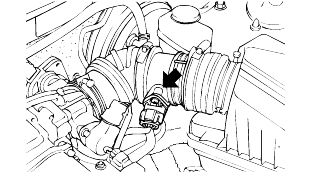

A | AFS & IAT-sensor | B | Engine Coolant temp. sensor | |||
![]() | ![]() | |||||
C | TPS (Including idle switch) & ETS | D | Accelerator Position Sensor | |||
![]() | ![]() | |||||

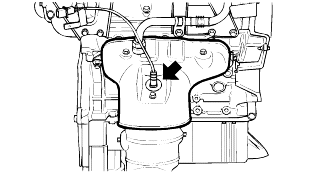

E | Knock sensor | F | O2 sensor | |||
![]() | ![]() | |||||
G | Crankshaft Position Sensor | H | Camshaft Position Sensor | |||
![]() | ![]() |
I | PCSV | J | Control relay | ||||
![]() | ![]() | ||||||

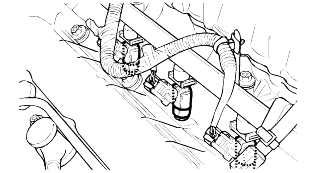

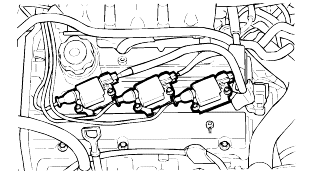

K | Injector | L | Ignition coil | ||||
![]() | ![]() | ||||||
M | EGR solenoid valve | N | Igniting power transistor | ||||
![]() | ![]() | ||||||
O | Inhibitor switch | ||||||
![]() |
