3.

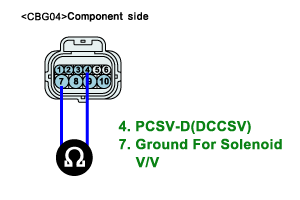

Measure resistance between terminal "4" and terminal "7" of the ATM SOLENOID VALVE harness connector.
1)
Specification: Approximately 3.5 ± 0.2 Ω (25℃)
Ignition "OFF".
Disconnect "A/T SOLENOID VALVE" connector
Measure resistance between terminal "4" and terminal "7" of the ATM SOLENOID VALVE harness connector.
Specification: Approximately 3.5 ± 0.2 Ω (25℃)
Is resistance within specifications?
YES
Go to "CHECK PCM/TCM" as below
NO
Replace DCC SOLENOID VALVE as necessary and go to "Verification Vehicle Repair" procedure
Connect scantool to data link connector(DLC)
Ignition "ON" & Engine "OFF".
Select A/T Solenoide valve Actuator test and Operate Actuator test.
Is Actuator Testing performed normally?
YES
Go to "Verification Vehicle Repair" procedure
NO
Replace PCM/TCM as necessary and Go to "Verificaiton Vehicle Repair" procedure
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0km/h
5. Throttle position sensor＜ 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
