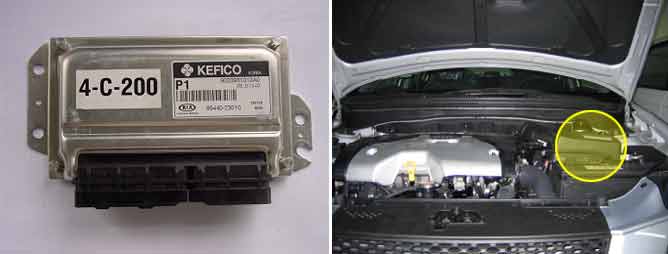

Component Location
General Description

The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communicaton is one of the vehicle communications method, which is now widely used to transfer the vehicle data.

DTC Description

The TCM reads data on the CAN-BUS line and checks whether the data is equal to the data which the TCM sent before. If the data is not the same the TCM decides that either the CAN-BUS line or TCM are malfuncting and sets this code.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Check communication

● Open or Short in CAN communication harness

● Faulty ECM

● Faulty TCM

Enable Conditions

● Input Speed ＞ 300rpm

Threshold Value

● No message from ems.

Diagnostic Time

● More than 2.5sec

Fail Safe

● INTELLIGENT SHIFT is inhibited

● Learning for oil pressure control is inhibited

●Torque Retard requirement is inhibited.

● Direct connection control of TCC is inhibited.

Schematic Diagram

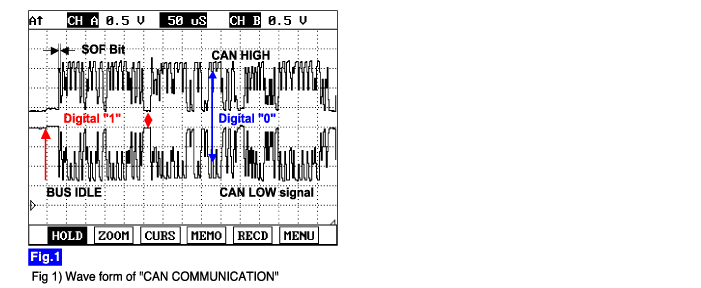

Signal Waveform
