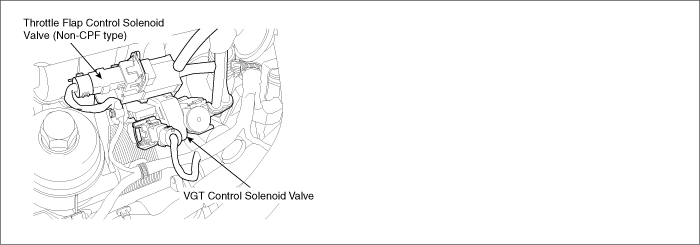

COMPONENT LOCATION
GENERAL DESCRIPTION

VGT(Variable Geometric Turbocharger) is the device which increases the efficiency of turbocharger at low rpm and lasts optimum turbo efficiency at high rpm as varying the cross sectional area through which exhaust gas passes turbocharger impeller. It relieves turbo lag at low speed and increse engine power genetation.Engine speed, APS signal, MAFS and Boost pressure sensor information is inputted to ECM. ECM actuates vacuum diafragm which controls exhaust gas line as controlling VGT Control solenoid valve duty to maintain optimum state of air compression.

DTC DESCRIPTION

P0048 is set when excessive current is detected in VGT Control solenoid valve control circuit for more than 1 sec.. This code is due to short to battery in control circuit or internal short of VGT Control solenoid valve component.

DTC DETECTING CONDITION

Item

Detecting Condition

Possible Cause

DTC Strategy

Signal monitoring

VGT Control solenoid valve circuit

VGT Control solenoid valve component

Enable Conditions

Engine run(monitoring only performed at actuator operating condition)

ThresholdValue

Short to battery

DiagnosticTime

1000ms

Fail Safe

Fuel Cut

NO

EGR Off

YES

Fuel Limit

YES

MIL

NO

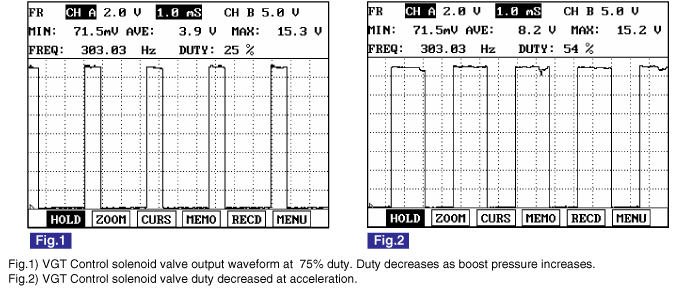

SIGNAL WAVEFORM AND DATA
SPECIFICATION

VGT Control solenoid valve component resistance

VGT Control solenoid valve operating Hz

VGT Control solenoid valve operating duty

14.7 ~ 16.1Ω (20℃)

300Hz

75% at idle, decreases as accelerating

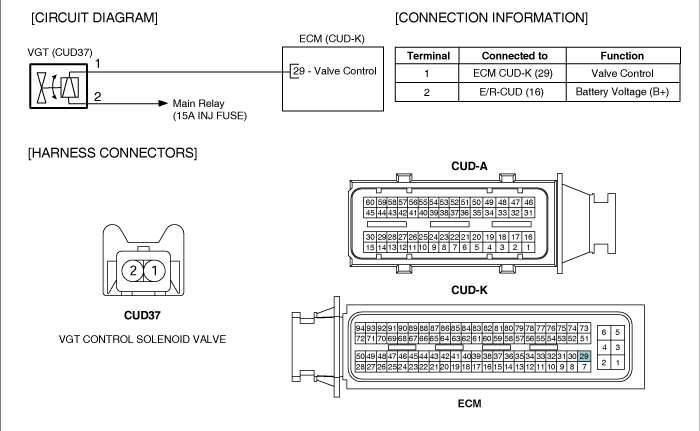

SCHEMATIC DIAGRAM
MONITOR SCANTOOL DATA
1.

Connect scantool to Data Link Cable. (DLC)

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

Monitor "BOOST PRESS. SENSOR" parameter on the Scantool.

Specification : 1028hpa ± 100hpa(VGT actuator : 75%) at idle

TERMINAL AND CONNECTOR INSPECTION
1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various problems and damge of component.

2.

Perform checking procedure as follows.

(1)

Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.

(2)

Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking device and connecting condition between terminal and wiring.

note

Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector or checking connecting condition. ( after checking, reconnect the pin at correct position. )

3.

Is the problem found?

▶ Repair the trouble causing part and go to "Verification of Vehicle Repair".

▶ Go to "Power Circuit Inspection".

POWER CIRCUIT INSPECTION
1.

Check power circuit voltage

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect VGT Control solenoid valve connector.

(3)

IG KEY "ON"

(4)

Measure the voltage of terminal 2 of VGT Control solenoid valve.

Specification : 11.5V~13.0V

(5)

Is the measured voltage within the specification?

▶ Go to "Control Circuit Inspection".

▶ Repair E/R JUNCTION BOX 15A INJ fuse and related circuit and go to "Verification of Vehicle Repair".

CONTROL CIRCUIT INSPECTION
1.

Check monitoring voltage in control circuit

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect VGT Control solenoid valve connector.

(3)

IG KEY "ON"

(4)

Measure the voltage of terminal 1 of VGT Control solenoid valve.

Specification : 3.2V~3.7V

(5)

Is the measured voltage within the specification?

▶ Go to "Component Inspection".

▶ When voltage is not detected : Go to "2. Check open in control circuit" as follows.

▶ When high voltage is detected : Repair short to battery and go to "Verification of Vehicle Repair".

2.

Check open in control circuit

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect VGT Control solenoid valve connector and ECM connector.

(3)

Check continuity between VGT Control solenoid valve connector terminal 1 and ECM connector(CUD-K) terminal 29.

specification : Continuity ( below 1.0Ω )

(4)

Is the measured resistance within the specification?

▶ Repair short to ground and go to "Verification of Vehicle Repair".

▶ Repair open in control circuit and go to "Verification of Vehicle Repair".

COMPONENT INSPECTION
1.

Check VGT Control solenoid valve component resistance

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect VGT Control solenoid valve connector.

(3)

Measure the resistance between VGT Control solenoid valve component terminal 1 and 2.

Specification : 14.7 ~ 16.1Ω (20℃)

(4)

Is VGT actuator component resistance within the specification?

▶ Go to "2.Check VGT Control solenoid valve operation" as follows.

▶ Replace VGT Control solenoid valve and go to "Verification of Vehicle Repair".

2.

Check VGT Control solenoid valve operation

(1)

IG KEY "ON", ENGINE "ON".

(2)

Check that VGT Control solenoid valve operating duty is 75% after warming engine up.

(3)

Check if vacuum generates after disconnecting VGT valve vacuum hose.

(4)

Check if vacuum generates when decelerating after rapid acceleration (VGT Control solenoid valve operating duty 9.8%).

Specification : VGT Control solenoid valve duty 75% : vacuum generates

VGT Control solenoid valve duty 9.8% : vacuum does not generate

▶ Go to "Verification of Vehicle Repair".

▶ Replace VGT Control solenoid valve and go to "Verification of Vehicle Repair".

※ Repeat this process 2~3 times.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault is corrected.

1.

After connecting Scantool select "DIAGNOSTIC TROUBLE CODES(DTCs)" mode.

2.

Clear recorded DTC using Scantool.

3.

Drive the vehicle within DTC "Enable conditions" in "General information".

4.

After selecting "DIAGNOSTIC TROUBLE CODES(DTCs)" mode and check if DTC is recorded again.

5.

Are any DTCs recorded ?

▶ Go to the DTC guide of recorded NO. in Scantool.

▶ System operates within specification.
