Remove the under cover(A) on the floor console(A). (Refer to Body Gr. - "Console")

Disconnect the power outlet connector(A) and AUX ＆ USB jack connector (B) from under cover.

Remove the AUX ＆ USB jack(A) after disconnecting the AUX ＆ USB jack connector.

Remove the floor console.

(Refer to the Body group - Console)

Disconnect the USB inferface unit connector.

Remove the USB interface unit(A) after loosening 2 bolts(B).

Install the AUX ＆ USB jack.

Connect the AUX ＆ USB jack connector.

Install the under cover to the floor console.

Install the USB interface unit.

Connect the USB interface unit connector.

Install the floor console.

Disconnect the negative(-) battery terminal.

Disconnect the AUX ＆ USB jack after removing the under cover.

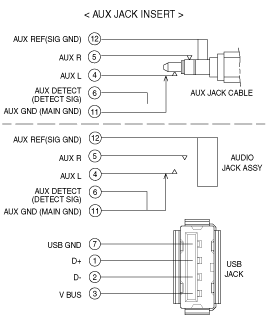

Using an ohmmeter, check for continuity between the terminals of AUX ＆ USB jack connector.
