INSPECTION
LIGHTING SWITCH INSPECTION
1.

With the multi function switch in each position, make sure that continuity exists between the terminals below.

If continuity is not as specified, replace the multi-function switch

[LHD]
[RHD]
LIGHTING SWITCH (AUTO LIGHT)
LIGHTING SWITCH
DIMMER AND PASSING SWITCH
TURN SIGNAL SWITCH
FRONT FOG LAMP
REAR FOG LAMP
WIPER AND WASHER SWITCH INSPECTION
1.

With the multi function switch in each position, make sure that continuity exists between the terminals below.

If continuity is not as specified, replace the multi-function switch.

[LHD]
[RHD]
WIPER SWITCH
WASHER SWITCH
REAR WIPER ＆ WASHER SWITCH
REMOVAL
1.

Disconnect the negative (-) battery terminal.

2.

Remove the steering column upper and lower shrouds after removing 3 screws.

note

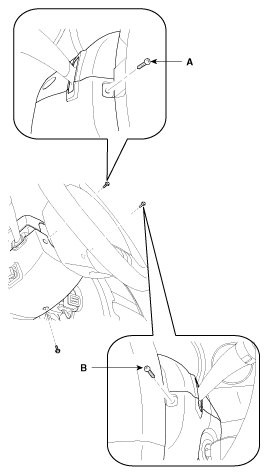

Remove the 2 screws (A,B) after turning the steering left and right.

3.

Disconnect the light switch connector (A) and the wiper switch connector (B).

4.

Remove the lighting switch (A) by pushing the lock pin (B).

[LHD]
[RHD]
5.

Remove the wiper switch (A) by pushing the lock pin (B).

[LHD]
[RHD]
INSTALLATION
1.

Install the wiper switch then connect the lighting switch connector.

2.

Install the lighting switch then connect the wiper switch connector.

3.

Install the steering column upper and lower shrouds.
