Set up ＇GDS＇ with ＇GDS TPMS＇.

Select the "CURRENT DATA" function of "TPMS" system.

Monitor the parameters related to ＇Rear Right/ Left LFI＇ on the GDS.

1)

Specification : When the vehicle is driving over 25 km/h and acceleration is more than 5g,

＇LFI No Response Pulse＇ is ＇NO＇.

＇LFI Fail Pulse＇ is ＇NO＇.

＇LFI Pass Pulse＇ is ＇YES＇.

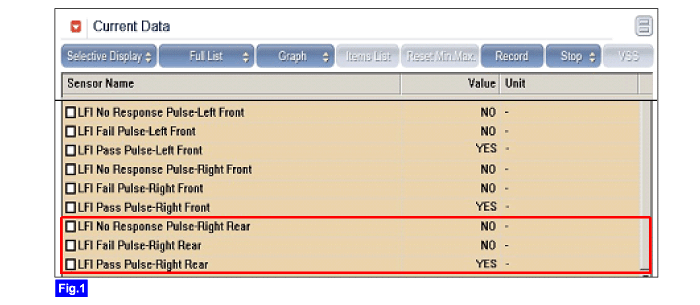

Fig.1) Detect "PASS" pulse from LFI(normal)

Are parameters normal?

▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.

▶ Go to "Verification of vehicle Repair" procedure.

▶ Go to "Inspection/Repair" procedure.
