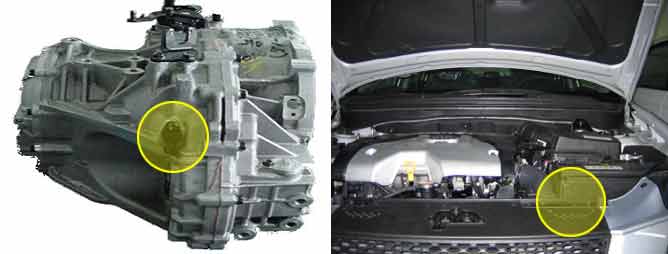

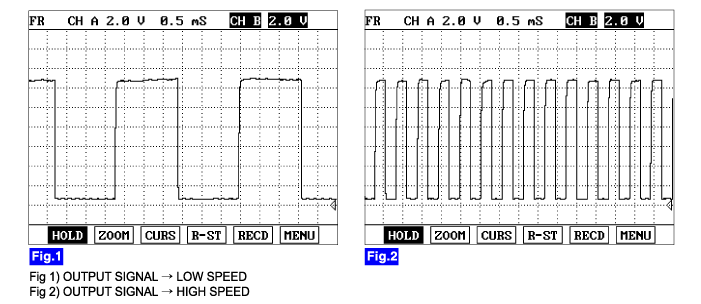

The Output Speed Sensor outputs pulse-signals according to the revolutions of the output shaft of the transmission. The Output Speed Sensor is installed in front of the Transfer Drive Gear to determine the Transfer Drive Gear rpms by counting the frequency of the pulses. This value, together with the throttle position data, is mainly used to decide the optimum gear position.
The TCM sets this code if the calculated value of the pulse-signal is noticeably different from the value calculated, using the Vehicle Speed Sensor output, when the vehicle is running faster than 30 km/h. The TCM will initiate the fail safe function if this code is detected.
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Speed rationality check | ● Sensor power circuit is open ● Sensor ground circuit is open ● Faulty OUTPUT SPEED SENSOR ● Faulty PCM |
Enable Conditions1) | ● Battery Voltage ≥ 10V ● TPS ≥ 15% ● Engine speed ≥ 3000rpm ● Lever position : D,3,2,L ● State of brake : OFF | |
Enable Conditions2) | ● Battery Voltage ≥ 10V ● Input speed ≥ 1500rpm ● Engine speed ≥ 3000rpm ● Lever position : D,3,2 ● State of brake : OFF | |
Threshold Value1) | ● Output speed = 0 & Current gear = 1 | |
Threshold Value2) | ● Output speed = 0 & Current gear 〉1 | |
Diagnostic Time1) | ● More than 5.6sec | |
Diagnostic Time2) | ● More than 4sec | |
Fail Safe | ● Locked into 3rd or 2nd gear. ● Apply an electric current to Solenoide valve ● Manual shifting is possibe(2 nd → 3 rd ,3 rd → 2 nd) |
Input shaft & Output shaft speed sensor
● Type : Hall sensor
● Current consumption : 22mA(MAX)
● sensor body and sensor connector have been unified as one.
