3.

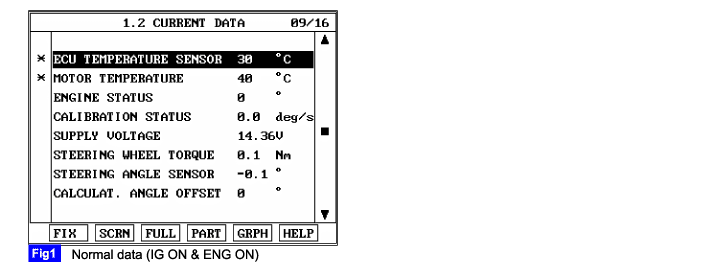

Monitor the＂MOTOR TEMPERATURE＂parameters on the Scantool.
1)
Specification : Less than 85℃ (185℉)
Connect scantool to Data Link Connector(DLC)
Ignition ＂ON＂& Engine＂ON＂.
Monitor the＂MOTOR TEMPERATURE＂parameters on the Scantool.
Specification : Less than 85℃ (185℉)
Is the measured ＂Motor Temperature＂within specifications?
YES
Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and EPS CM memory is not cleared yet. Go to＂Verification of Vehicle Repair＂procedure
NO
Wait till the EPS motor cool down sufficiently. Go to＂Component Inspection＂procedure,
