4.
Shift gear at each position.

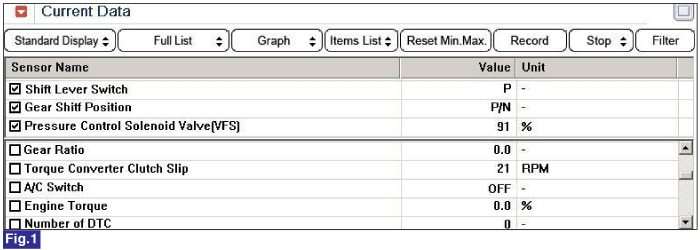

Fig 1) "P,N"
Fig 2) "R"
Fig 3) "1st" grar
Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear
Connect scantool to data link connector(DLC)
Engine "ON".
Monitor the "VF SOL. VALVE" parameter on the GDS.
Shift gear at each position.
Fig 1) "P,N"
Fig 2) "R"
Fig 3) "1st" grar
Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear
Does "VF SOL DUTY " follow the referance data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure. |
 | ▶ Go to "W/Harness Inspection " procedure. |
