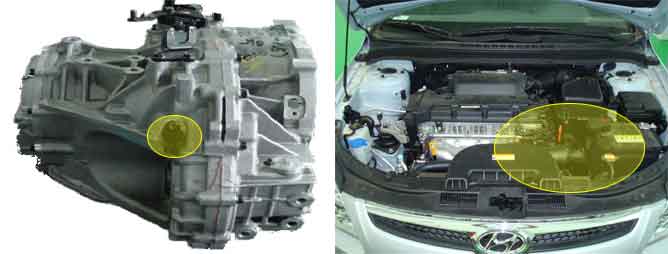

The Output Speed Sensor outputs pulse-signals according to the revolutions of the output shaft of the transmission. The Output Speed Sensor is installed in front of the Transfer Drive Gear to determine the Transfer Drive Gear rpms by counting the frequency of the pulses. This value, together with the throttle position data, is mainly used to decide the optimum gear position.
The TCM sets this code if the calculated value of the pulse-signal is noticeably different from the value calculated, using the Vehicle Speed Sensor output, when the vehicle is running faster than 30 km/h. The TCM will initiate the fail safe function if this code is detected.
Item | Detecting Condition | Possible Cause | |
DTC Strategy |
•
Electrical Check |
•
Signal circuit is open or short
•
Sensor power circuit is open
•
Sensor ground circuit is open
•
Faulty OUTPUT SPEED SENSOR
•
Faulty PCM | |
Case 1 | Enable Conditions |
•
(1st) TR switch D range
•
Throttle Position > 7%
•
Engine speed >2600rpm
•
Vehicle Speed >20km/h | |
Case 2 | Enable Conditions |
•
(2 nd~3 rd) TR switch D range
•
Input speed(NT) > 1500 rpm
•
Engine speed >2600rpm | |
Case 3 | Enable Conditions |
•
(4th) TR switch D range
•
Input speed > 900 rpm
•
Engine speed >2600rpm | |
Threshold Value |
•
Output speed no signal | ||
Diagnostic Time |
•
More than 5sec. | ||
Fail Safe |
•
Locked into 3rd or 2nd gear
•
Apply an electric current to Solenoide valve
•
Manual shifting is possibe(2 nd → 3 rd ,3 rd → 2 nd) | ||
Input shaft & Output shaft speed sensor
Type : Hall sensor
Current consumption : 22mA(MAX)
Sensor body and sensor connector have been unified as one.
Fig 1) INPUT SIGNAL → LOW SPEED
Fig 2) INPUT SIGNAL → HIGH SPEED
