The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 2nd gear ratio, while the transaxle is engaged in the 2nd gear. For example, if the output speed is 1000 rpm and the 2nd gear ratio is 1.529, then the input speed is 1529 rpm.
This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 2nd gear ratio, while the transaxle is engaged in 2nd gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfuctioning rather than an electrical issue.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
2nd gear incorrect ratio |
•
Faulty Input speed sensor
•
Faulty output speed sensor
•

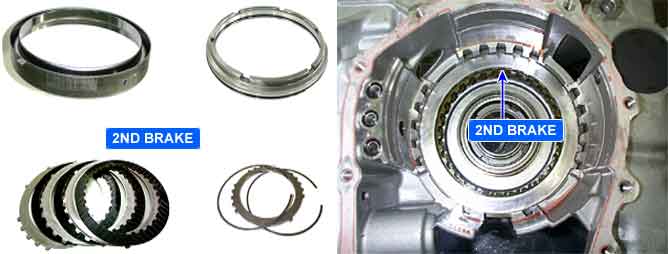

Faulty UD clutch or 2-4 brake |
Enable Conditions |
•
Engine speed >400rpm
•
Output speed >900rpm
•
Lever position : D,3,2
•
Input speed >300rpm
•
A/T oil temp output ≥ -10℃
•
TRANSAXLE RANGE SWITCH is normaland after 2sec is passed from IG ON | |
Threshold Value |
•
ㅣInput speed/2nd gear ratio - output speed ㅣ≥200rpm | |
Diagnostic Time |
•
More than 1sec | |
Fail Safe |
•
Locked into 3 rd gear.(If diagnosis code P0732 is output four times, the transaxle is locked into 3rd gear) |
A : INPUT SPEED SENSOR
B : OUTPUT SPEED SENSOR
