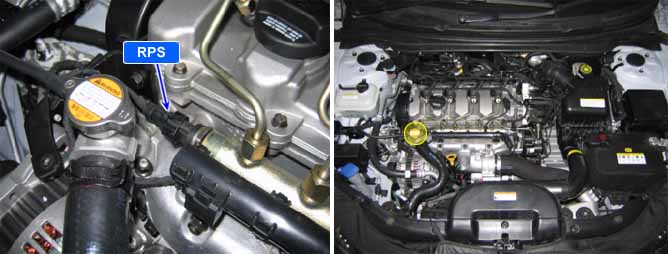

Component Location
General Description

RPS(Rail Pressure Sensor), consists of piezzo electric element, measures rail pressure inside of common rail. ECM determines optimum fuel injection quantity at specific engine condition based on RPS signal. RPS signal is also used as rail pressure regualtor feed back signal in order to achieve optimum rail pressure at certain engine condition.

DTC Description

P0192 is set when RPS output voltage is below the minimum value of 0.254V for more than 0.2 sec.. This code is due to the open in power circuit or the short to ground in signal circuit.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Voltage monitoring

● RPS circuit

● RPS component

Enable Conditions

● Engine running

Threshold Value

● Output sinal below minimum value (below 0.254V)

Diagnostic Time

● 0.2 sec.

Fail Safe

Fuel Cut

NO

● Rail press. Sensor value fixed at 330bar

EGR Off

NO

Fuel Limit

YES

Check Lamp

ON

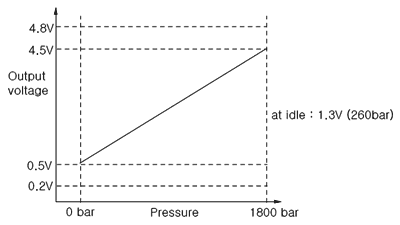

Specification
Schematic Diagram
note
To view Flash content, you need to install the appropriate browser extension

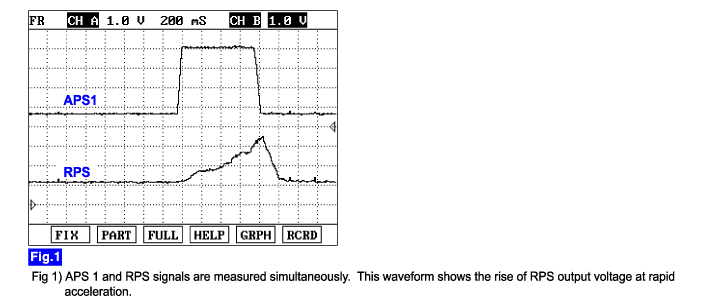

Signal Waveform
