Terminal and Connector Inspection
1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various problems and damge of component.

2.

Perform checking procedure as follows.

(1)

Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.

(2)

Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking device and connecting condition between terminal and wiring.

note

Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for checking connecting condition. ( after checking, reconnect the pin at correct position. )

3.

Is the problem found?

YES

a.

Repair the trouble causing part and go to "Verification of Vehicle Repair".

NO

a.

Go to "Power Circuit Inspection".

Power Supply Circuit Inspection
1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect water sensor connector.

3.

IG KEY "ON".

4.

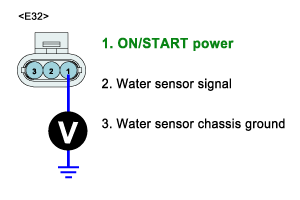

Measure the voltage of water sensor connector terminal 1.

1)

Specification : 11.0V~12.5V

5.

Is the measured voltage within the specification?

YES

a.

Go to "Signal Circuit Inspection".

NO

a.

Repair open in E/R JUNCTION BOX 10A SNSR.2 FUSE and related circuit and go to "Verification of Vehicle Repair".

Signal Circuit Inspection
1.

Check signal circuit voltage

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect water sensor connector.

(3)

IG KEY "ON"

(4)

Measure the voltage of water sensor connector terminal 2.

1)

Specification : 0.0V~0.1V

(5)

Is the measured voltage within the specification?

YES

a.

Go to "2. Water warning lamp operation test" as follows.

NO

a.

Repair short to battery and go to "Verification of Vehicle Repair".

2.

Water warning lamp operation test

(1)

IG KEY "OFF", ENGINE "OFF".

(2)

Disconnect water sensor connector.

(3)

IG KEY "ON".

(4)

Connect water sensor connector terminal 1 and terminal 2 using jump wire.

1)

Specification : Water warning lamp on cluster turns ON. 12V battery voltage is detected at ECM connector (CDD-K) terminal 40.

(5)

Does water warning lamp turn ON? And is 12V battery voltage detected at ECM connector(CDD-K) terminal 40?

YES

a.

Go to "Ground Circuit Inspection".

NO

a.

Repair open in water warning lamp filament and related circuit and go to "Verification of Vehicle Repair".

Ground Circuit inspection
1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect water sensor connector.

3.

Check continuity between Water sensor connector terminal 3 and chassis ground.

1)

Specification : Continuity (below 1.0Ω)

4.

Is the measured resistance within the specification?

YES

a.

Go to "Component Inspection".

NO

a.

Repair open in signal circuit and go to "Verification of Vehicle Repair".
