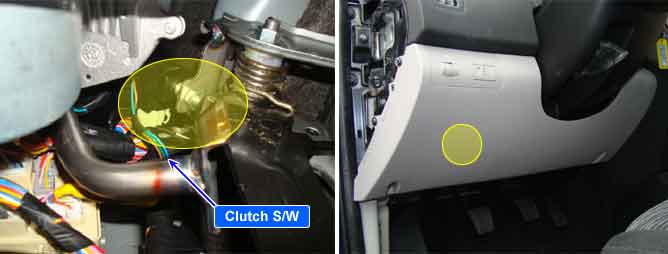

If clutch S/W signal is ON, this signal is sent to ECM which monitors cltuch operation. That is used to monitor driving and shifting. ECM starts engine by controlling starter relay if clutch signal is ON at idle stop.
ECM sets DTC P0704 in case that the gear shifting signal is inputted more than 20 times but clutch signal is less than 2 times while vehicle is driving higher than 50km/h. The idle stop does not perform if P0704 is set.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal check |
•
Poor connection
•
Clutch Switch
•
Abnormal Clutch Switch installation |
Enable Conditions |
•
No brake signal
•
Vehicle speed > 50km/h
•
15 seconds elapsed after gear shifted
•
Number of gear shifted > 20 times | |
Threshold Value |
•
Number of clutch switch activation < 2times | |
Diagnostic Time |
•
Continuous | |
MIL ON Condition |
•
DTC only(Idle stop forbidden) |
