Monitor Actuation Test
1.

Connect scantool to Data Link Connector(DLC)

2.

Ignition "ON" & Engine "OFF".

3.

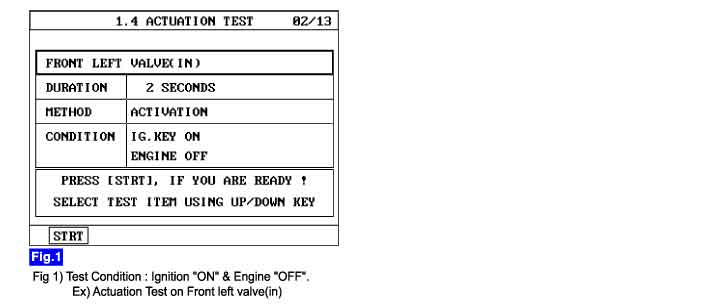

Select the "Actuation Test" mode on the scantool.

4.

Inspect opearating status of Front left valve(in) with Actuation Test.

1)

Specification : It’s normal if operating sound is heard.

5.

Does a Front left valve(in) operate normally

YES

a.

Fault is intermittent caused by poor connection in power harness (ABS2) and/or HECU’s connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

a.

Go to "Terminal and Connector Inspection" procedure.
