Component Location
General Description

Many control units have applied to vehicle as it becomes more eletrolnical. These units control their own system based on information from diverse sensors. Therefore necessity of common use of diverse sensor information and importance of stable power supply are gathering strength. Battery sensor is mounted on battery (-) terminal. It transmits battery voltage, current, temperature information to ECM. ECM controls generating voltage by duty cycle based on these signals.

DTC Description

ECM sets this code when the battery charging current from battery sensor is too low.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

Signal Monitoring

Poor connection

Open or short in charging system

Faulty charging system

Faulty ECM

Enable Conditions

IG "ON"

No error related to LIN communication

Threshold value

Battery charging current < Calibration

State of Charge(SOC) < Calibration

Diagnosis Time

60sec

MIL On Condition

NO MIL ON(DTC only)

Diagnostic Circuit Diagram
Signal Waveform & Data

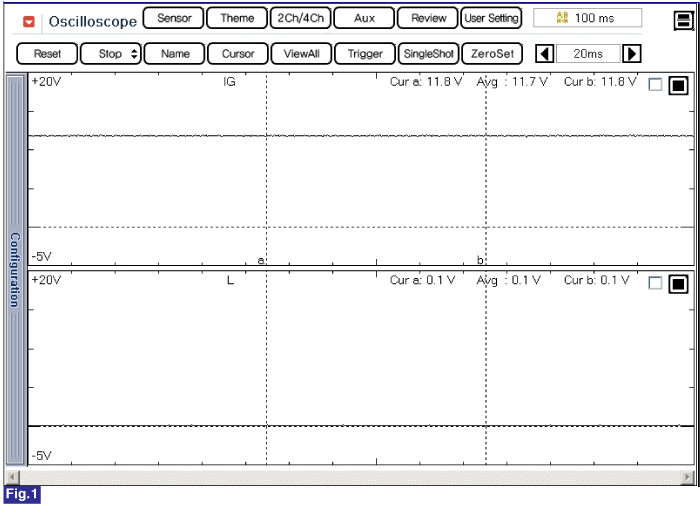

Fig .1) Normal waveforms of IG, L terminal of alternator during charge warning lamp is ON

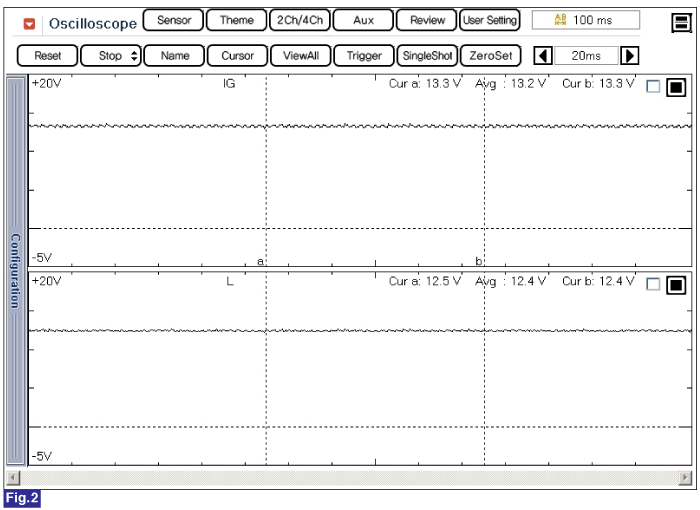

Fig .2) Normal waveforms of IG, L terminal of alternator during charge warning lamp is OFF

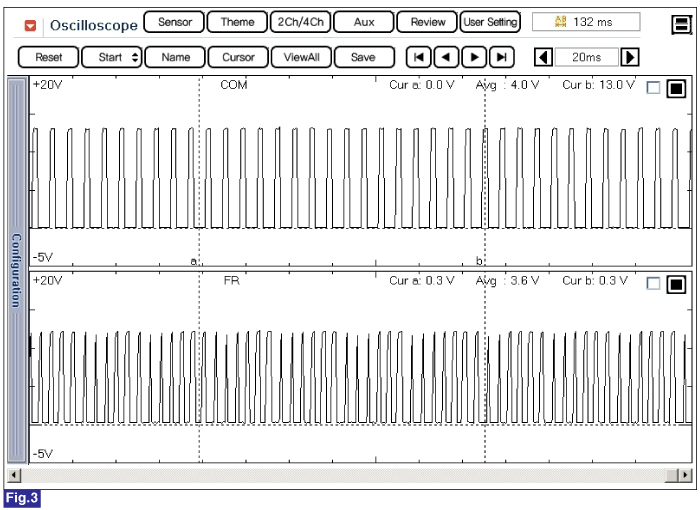

Fig. 3) Normal waveforms of COM, FR terminal of alternator at idle.

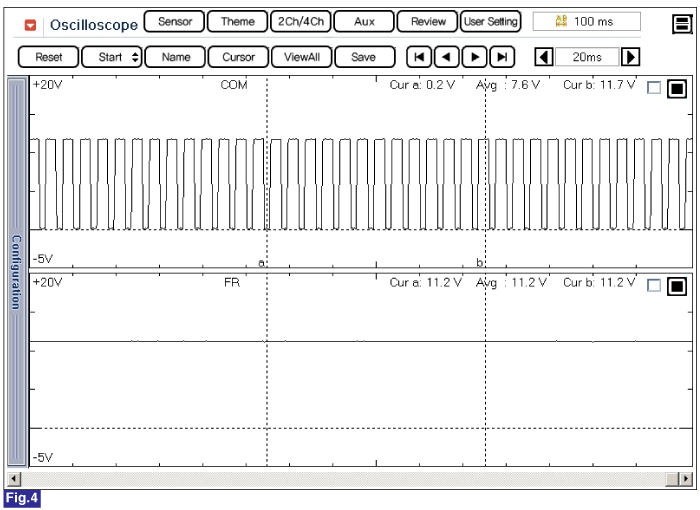

Fig. 4) Normal waveforms of COM, FR terminal of alternator under connector disconnected condition.
