LIN technology is , a serial communication system which is used for communicating only one signal, developed to substitute CAN network, Normally used for multi signal communiction. It is only single wire to make LIN communiction in order to make simple network that is not important speed.
In case of ISG system, ECM receives battery infromation such as battery voltage, current and temperature etc.) through the LIN.

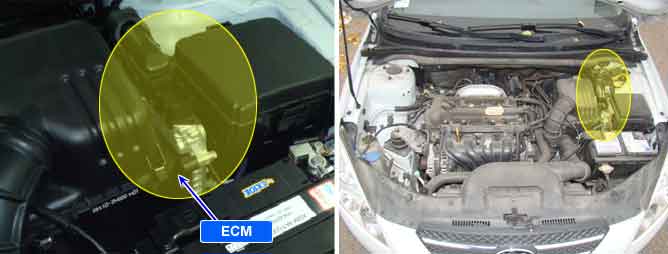

With the information received through the LIN, ECM decides alternator control, idle stop and auto start by receiving battery information.
If it is impossible to communicate through internal or external CAN line over 500ms, ECM sets DTC U1111.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
CAN communication check |
•
Poor connection
•
Open/Short |
Enable Conditions |
•
- | |
Threshold Value |
•
No response error
•
Checksum error
•
Header timeout error
•
Overrun error
•
Fail to send data bytes error | |
Diagnostic Time |
•
Continuous | |
MIL ON Condition |
•
DTC only(Idle stop forbidden) |
Fig.1) Signal waveforms of battery sensor
