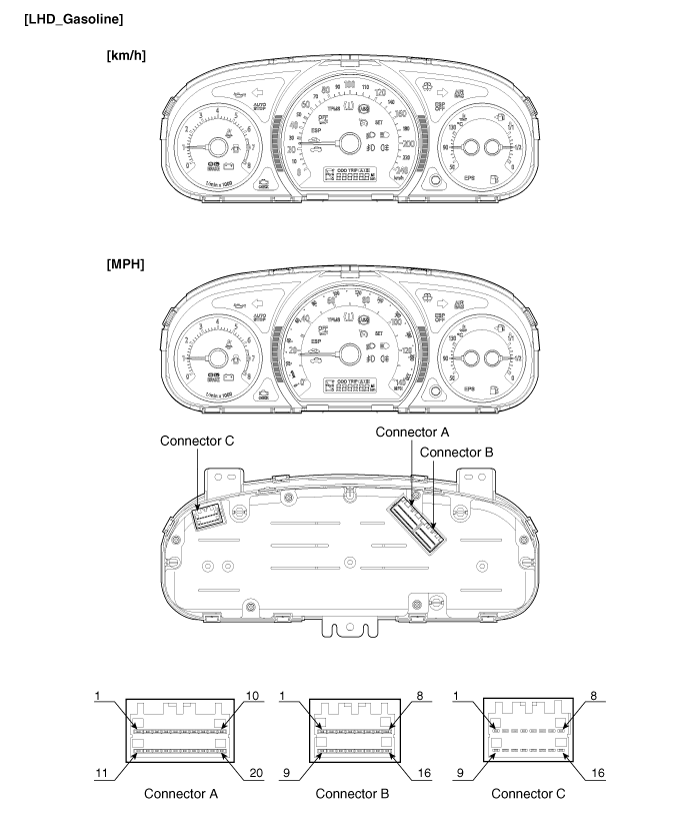

No | Connector A | Connector B | Connector C |
1 | CAN (-) | Cruise, PAB OFF (RHD) | Fuel Input |
2 | CAN (+) | ILL (-) | ESP OFF, Cruise Set (RHD) |
3 | Door Open | PAB OFF, ESP OFF (RHD) | Front Fog |
4 | Seat Belt | High Beam Input (+) | Rear Fog |
5 | ILL (+) | Cruise Set, Washer Low (RHD) | MICOM Check |
6 | High Beam GND | Temparature Input | AT PWM |
7 | Low Beam | FGND | Speed Input |
8 | Trunk Open | Ignition | Tachometer Input |
9 | Immobilizer | Oil Pressure | Washer Low, Cruise (RHD) |
10 | ESP | Water Separator | Airbag (-) |
11 | Check Engine | Airbag (+) | Turn Right |
12 | Alternator | Driver Door (ISG) | A/T P |
13 | Ignition (+) | ALT_L OUT (ISG) | A/T R |
14 | Parking Brake | - | A/T D |
15 | EBD | - | A/T N |
16 | Battery (+) | DC 12V (ISG) | ABS |
17 | PGND |
|
|
18 | Glow | ||
19 | SGND | ||
20 | Turn Left |

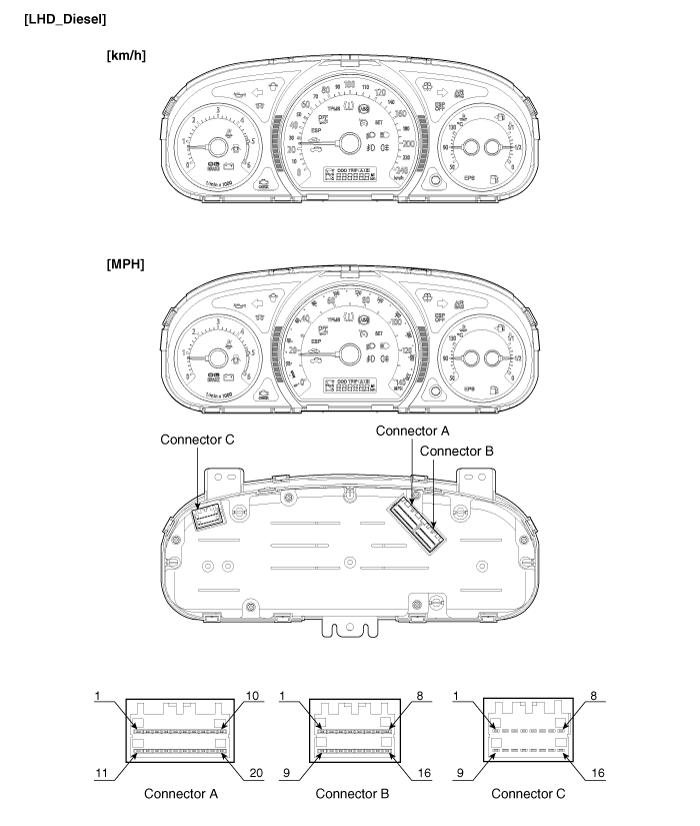

No | Connector A | Connector B | Connector C |
1 | CAN (-) | Cruise, PAB OFF (RHD) | Fuel Input |
2 | CAN (+) | ILL (-) | ESP OFF, Cruise Set (RHD) |
3 | Door Open | PAB OFF, ESP OFF (RHD) | Front Fog |
4 | Seat Belt | High Beam Input (+) | Rear Fog |
5 | ILL (+) | Cruise Set, Washer Low (RHD) | MICOM Check |
6 | High Beam GND | Temparature Input | AT PWM |
7 | Low Beam | FGND | Speed Input |
8 | Trunk Open | Ignition | Tachometer Input |
9 | Immobilizer | Oil Pressure | Washer Low, Cruise (RHD) |
10 | ESP | Water Separator | Airbag (-) |
11 | Check Engine | Airbag (+) | Turn Right |
12 | Alternator | Driver Door (ISG) | A/T P |
13 | Ignition (+) | ALT_L OUT (ISG) | A/T R |
14 | Parking Brake | - | A/T D |
15 | EBD | - | A/T N |
16 | Battery (+) | DC 12V (ISG) | ABS |
17 | PGND |
|
|
18 | Glow | ||
19 | SGND | ||
20 | Turn Left |
