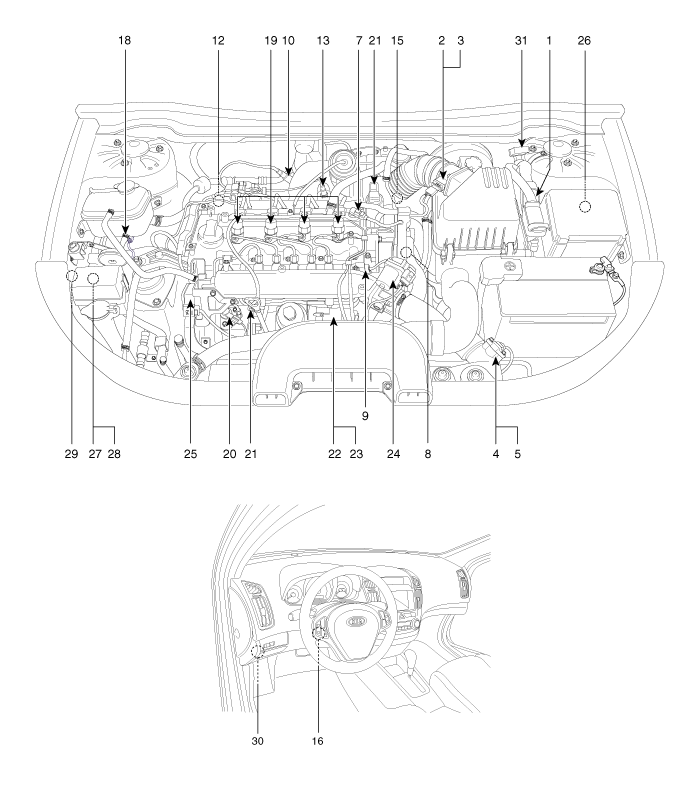

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2 built in BPS
6. Crankshaft Position Sensor (CKPS)
17. Vehicle Speed Sensor (VSS)
7. Camshaft Position Sensor (CMPS)
21. Electric EGR Control Valve
8. Engine Coolant Temperature Sensor (ECTS)
9. Rail Pressure Sensor (RPS)
19. Injector
10. Lambda Sensor
13. Exhaust Gas Temperature Sensor (EGTS) #1 for VGT
11. Fuel Temperature Sensor (FTS)
20. Fuel Pressure Regulator Valve
12. Differential Pressure Sensor (DPS) [With CPF]
14. Exhaust Gas Temperature Sensor (EGTS) #2 for CPF [With CPF]
15. Water Sensor (included in Fuel Filter)
16. Accelerator Pedal Position Sensor (APS)
18. A/C Pressure Transducer (APT)
22. VGT Control Solenoid Valve
23. Throttle Flap Control Solenoid Vlave [Without CPF]
24. Throttle Control Actuator [With CPF]
25. Variable Swirl Control Actuator
26. Main Relay
27. Glow Relay
28. PTC Heater Relay (Optional)
29. Air Heater Relay
