General Description

LIN technology is , a serial communication system which is used for communicating only one signal, developed to substitute CAN network, Normally used for multi signal communiction. It is only single wire to make LIN communiction in order to make simple network that is not important speed.

In case of ISG system, ECM receives battery infromation such as battery voltage, current and temperature etc.) through the LIN.

With the information received through the LIN, ECM decides alternator control, idle stop and auto start by receiving battery information.

DTC Description

ECM sets this code when there is an error in LIN communication line.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

Signal Monitoring

Open or short in LIN communication line

Enable Conditions

-

Threshold value

Framing error

Diagnosis Time

1sec

MIL On Condition

DTC only(Idle stop forbidden)

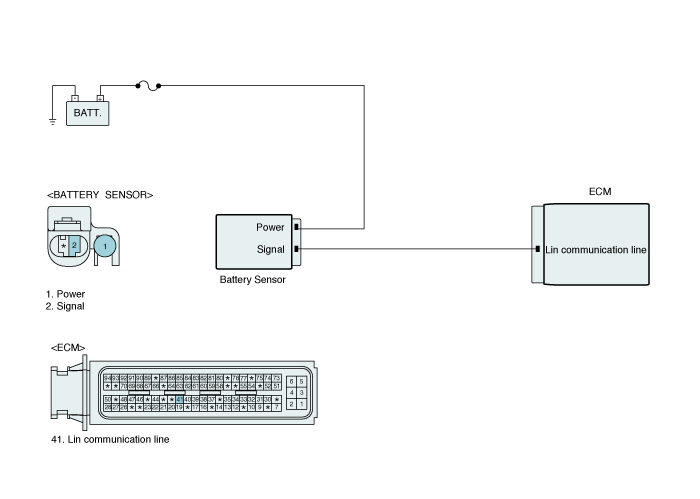

Diagnostic Circuit Diagram
Signal Waveform & Data

Fig.1) Signal waveforms of battery sensor

Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Engine start.

3.

Monitor "battery sensor" parameter on GDS

4.

Are the parameters displayed correctly ?

▶ Fault is intermittent caused by poor contact in the sensor’s and/or ECM’s connector or was

repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor

connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as

necessary and go to "Verification of vehicle Repair" procedure.

▶ Go to "Terminal & Connector Inspection" procedure

Terminal and Connector inspection
1.

Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure

▶ Go to " Signal Circuit Inspection " procedure.

Signal Circuit Inspection
■ Check open in harness
1.

IG "OFF" and disconnect battery sensor and ECM connector.

2.

Check resistance between LIN terminal of battery sensor harness Connector and ECM harness connector.

Specification : Below 1.0Ω

3.

Is the measured resistance within specification ?

▶ Go to "Check short to battery in harness" as follows.

▶ Repair open in harnesses and go to "Verification of Vehicle Repair".

■ Check short to battery in harness
4.

IG "OFF" and disconnect battery sensor and ECM connector.

5.

IG "ON"

6.

Measure the voltage between LIN terminal of battery sensor harness connector and chassis ground.

Specification : Approx. 0V

7.

Is the measured voltage within specification ?

▶ Go to "Check short to ground in harness" as follows.

▶ Repair short to battery in harnesses and go to "Verification of Vehicle Repair".

■ Check short to ground in harness
8.

IG "OFF" and disconnect battery sensor and ECM connector.

9.

Check resistance between LIN terminal of battery sensor harness Connector and chassis ground.

Specification : Infinity

10.

Is the measured resistance within specification ?

▶ Go to "Componect Inspection" as follows.

▶ Repair short to ground in harnesses and go to "Verification of Vehicle Repair".

Component Inspection
■ LIN communication line waveform check
1.

IG "OFF"

2.

Connect probe to battery sensor to check signal waveform by using oscilloscope function.

3.

IG "ON" and monitor signal waveform.

Specification : Signal waveform will be displayed as Signal Waveform & Data

4.

Is the measured signal waveform O.K ?

▶ Go to "Verification of Vehicle Repair" procedure.

▶ Substitute with a known - good battery sensor and check for proper operation. If the problem is corrected, replace battery sensor and go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scantool and select "DTC" button.

2.

Press "DTC Status" button and confirm that "DTC Readiness Flag" indicates "Completed". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions

3.

Read "DTC Status" parameter

4.

Is parameter displayed "History(Not Present) fault"?

▶ System performing to specification at this time. Clear the DTC

▶ Go to the applicable troubleshooting procedure.
