2.
Remove the passenger’s crash pad side cover (A).
Disconnect the battery negative terminal.
Remove the passenger’s crash pad side cover (A).

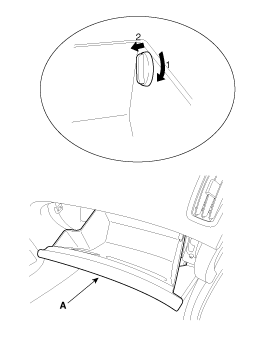

Remove the glove box (A) and housing (B). (Refer to glove box In BD group)
Disconnect the connector (A) and then remove the DC/DC converter (B).
Installation is reverse order of removal.
After disconnecting then reconnecting the battery negative cable, the ISG function dose not operates until the system is stabilized, about 4 hours.
