Components

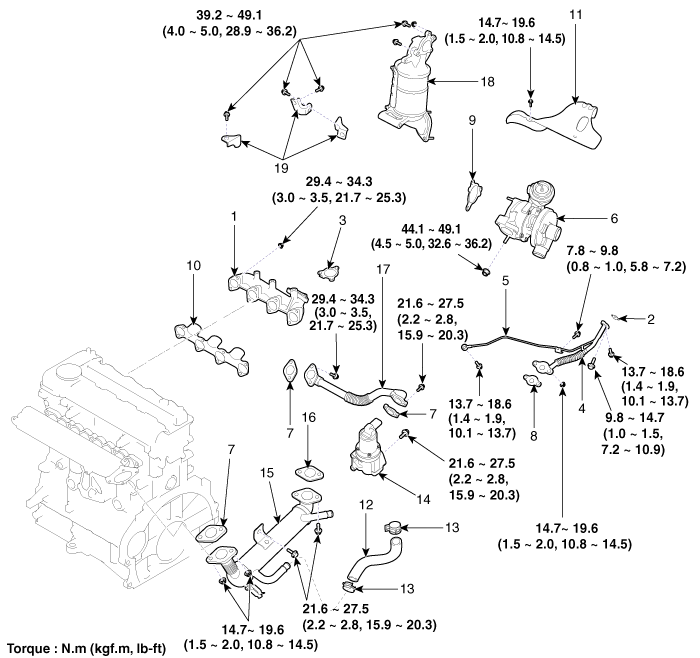

[1.6 VGT]

1. Exhaust manifold assembly

2. Turbocharger oil drain gasket

3. Turbocharger inlet gasket

4. Oil return pipe

5. Oil feed pipe

6. Turbocharger

7. EGR pipe gasket

8. Oil return pipe gasket

9. Turbocharger outlet gasket

10. Exhaust manifold gasket

11. Heat protector

12. EGR cooler inlet hose

13. Clamp

14. EGR valve assembly

15. EGR cooler

16. EGR valve gasket

17. EGR pipe

18. Catalytic converter (CPF)

19. Bracket

[1.6 WGT]

1. Exhaust manifold assembly

2. Turbocharger oil drain gasket

3. Turbocharger inlet gasket

4. Oil return pipe

5. Oil feed pipe

6. Turbocharger

7. EGR pipe gasket

8. Oil return pipe gasket

9. Turbocharger outlet gasket

10. Exhaust manifold gasket

11. Heat protector

12. EGR cooler inlet hose

13. Clamp

14. EGR valve assembly

15. EGR cooler

16. EGR valve gasket

17. EGR pipe

18. Catalytic converter (WGT)

19. Bracket
