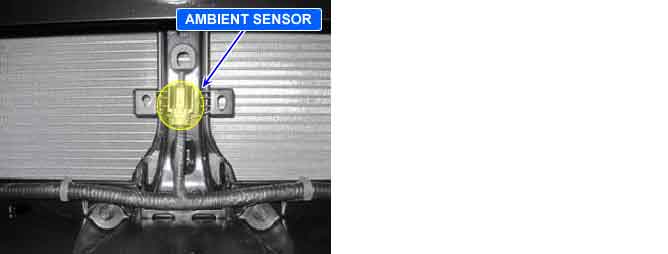

The Ambient Temperature is a NTCT type thermistor and is use for temperature regulation including blower motor level and mix mode control .
DTC B1237 sets if the Ambient Sensor signal is at or below 0.1V for 0.3 seconds.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Voltage check |
•
Short in signal circuit
•
Faulty Ambient Sensor
•
Faulty A/C control Module |
Enable Conditions |
•
Ignition ON | |
Threshold value |
•
Sensor signal is at or below 0.1V for 0.3 seconds | |
Failsafe |
•
Displayed '--' and A/C control Module regards and controls it as 20℃(68℉) |
Temperature(℃/℉) | Resistance(㏀) | Temperature(℃/℉) | Resistance(㏀) |
-20/-4 | 271.4 | 50/122 | 11 |
0/32 | 95.1 | 60/140 | 7.58 |
25/77 | 30 |
