6.
Monitor the parameters of 4 active WE sensors data.
Specification : the parameters related to 4 active WE sensors are displayed normally.
Connect the VCI to DLC for communication

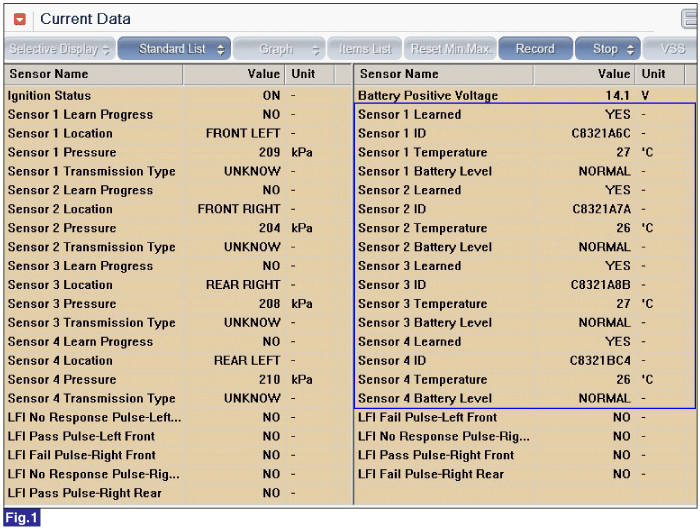

Fig.1) Sensor current data (normal)
Park the vehicle on a level surface.
Set up 'GDS' with 'GDS TPMS'.
Drive vehicle at a steady speed for more than 1 minute.
Select the "CURRENT DATA" function of "TPMS" system.
Select the "FULL" mode of "CURRENT DATA" function.
Monitor the parameters of 4 active WE sensors data.
Specification : the parameters related to 4 active WE sensors are displayed normally.
Connect the VCI to DLC for communication
Fig.1) Sensor current data (normal)
Is the same DTC shown, agian?
 | ▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
 | ▶ Substitute with a known-good TPMS receiver module and check for proper operation. ▶ If the problem is corrected, replace TPMS receiver module and then go to "Verification of Vehicle Repair" procedure. |
