3.
Monitor the parameters related to 'Rear Right WE sensor(Sensor 3)' on the GDS.
Set up 'GDS' with 'GDS TPMS'.
Select the "Sensor Status" mode of "Vehicle S/W Management" function.

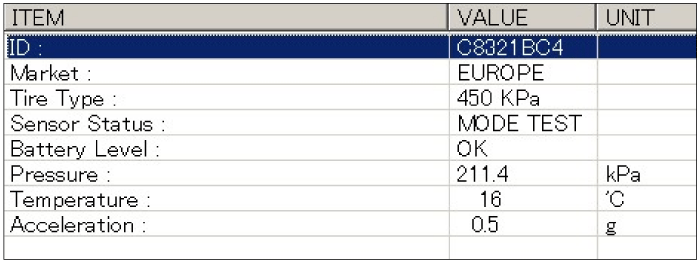

Monitor the parameters related to 'Rear Right WE sensor(Sensor 3)' on the GDS.
Is parameter within specifications?
 | ▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
 | ▶ Check for vehicle interference sources. ▶Repair if necessary and then go to "Verification of Vehicle Repair" procedure. |
