3.

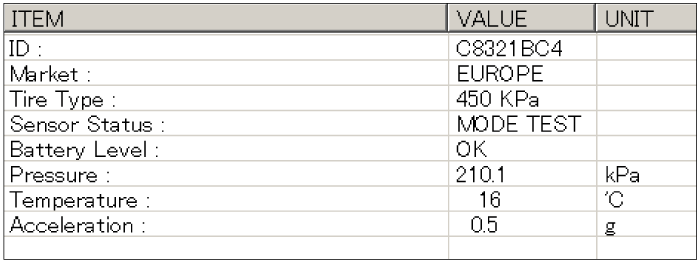

Monitor the parameter related to 'Rear Right WE Temperature' on the GDS.
Specification : 'Temperature' is Less than 115℃
Set up 'GDS' with 'GDS TPMS'.
Select the "Sensor Status" mode of "Vehicle S/W Management" function.
Monitor the parameter related to 'Rear Right WE Temperature' on the GDS.
Specification : 'Temperature' is Less than 115℃
Is parameter within specifications?
 | ▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Component Inspection" procedure. |
