Monitor GDS Data
1.

Park the vehicle on a level surface.

2.

Set up 'GDS' with 'GDS TPMS'.

3.

Select the "TPMS" system.

4.

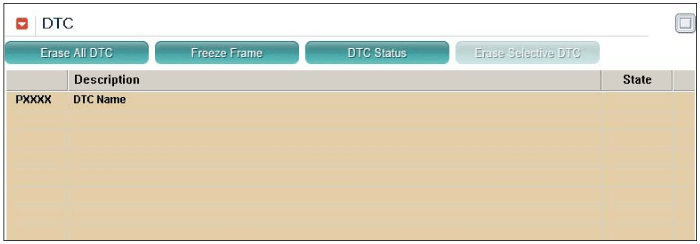

Execute "DTC Analysis" mode.

5.

Check the present DTC.

Connect the VCI to DLC for communication
6.

Are there any DTC's except for 'C1662'?

▶ Do all repairs associated with detected DTC's.

▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.

▶ Go to "Verification of vehicle Repair" procedure.
