3.
Remove the lower side crash pad switch (A) from the side crash pad cover by using the trim removal tool.
[LHD]
[RHD]
Disconnect the negative (-) battery terminal.
Remove the side crash pad cover.
(Refer to the BD group - "Crash pad")
Remove the lower side crash pad switch (A) from the side crash pad cover by using the trim removal tool.

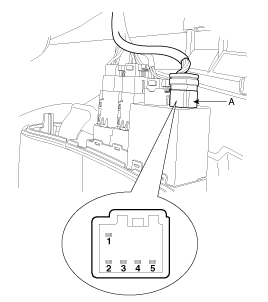

Remove the head lamp leveling switch connector from the lower crash pad switch.
Connect the battery voltage between terminals 3 and 4.
Measure the voltage between terminals 4 and 5 at each position.
Position No. | Rotation | Voltage (V) (±5%) |
0 | 0° | 11.55 |
1 | 20° | 9.21 |
2 | 40° | 7.52 |
3 | 60° | 6.63 |
If the voltage is not as specified, replace the head lamp leveling switch.
