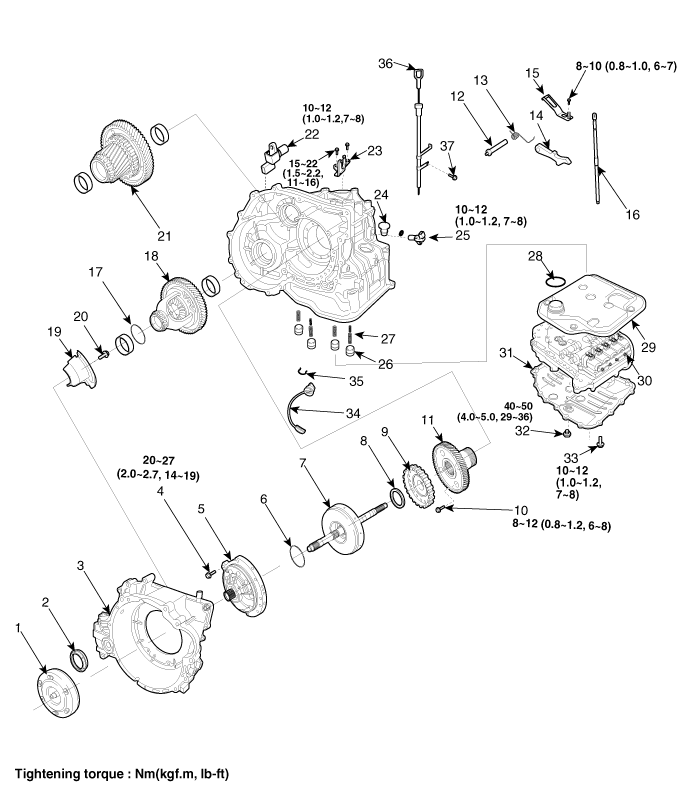

1. Torque converter

2. Differential oil seal

3. Converter housing

4. Oil pump mounting bolt

5. Oil pump assembly

6. Thrust washer

7. Underdrive(U/D) clutch

8. Thrust bearing

9. Underdrive(U/D) clutch hub

10. Transfer drive gear mounting bolt

11. Transfer drive gear

12. Parking sprag shaft

13. Sprag spring

14. Parking sprag

15. Detent spring

16. Manual control shaft

17. Spacer

18. Differential

19. Oil separate

20. Oil separate mounting bolt

21. Transfer driven gear

22. Output shaft speed sensor

23. Shift cable bracket

24. Plug

25. Input shaft speed sensor

26. Accumulator piston

27. Coil spring

28. O-ring

29. Oil filter

30. Valve body assembly

31. Oil pan

32. Drain plug

33. Valve body cover bolt

34. Valve body connector

35. Valve body connector mounting clip

36. Oil level gauge

37. Oil level gauge bracket bolt

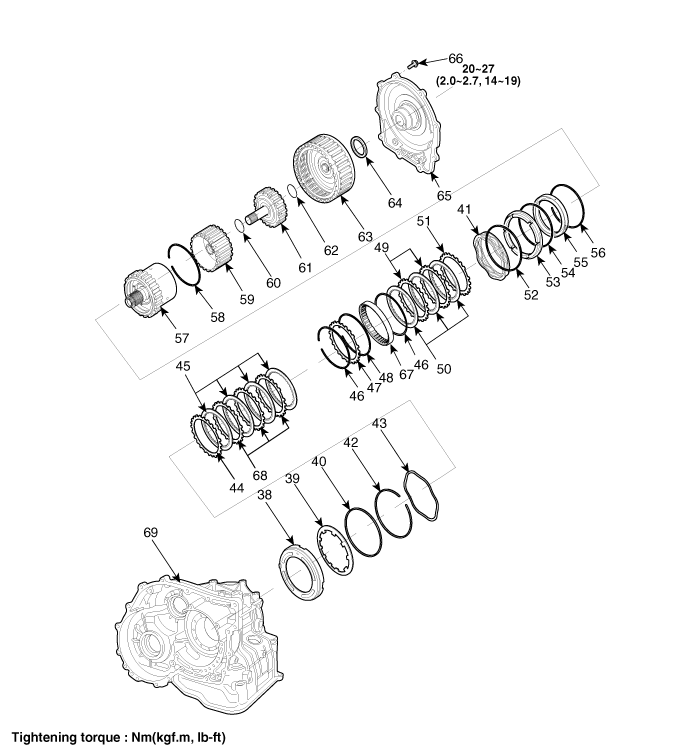

38. Low & reverse brake piston

39. Low & reverse brake return spring

40. Low & reverse brake spring retainer

41. 2ND brake return spring

42. Snap ring

43. Wave spring

44. Low & reverse pressure plate

45. Low & reverse brake disc

46. Snap ring

47. Reaction plate

48. Snap ring

49. 2ND brake plate

50. 2ND brake disc

51. 2ND brake pressure plate

52. D-ring

53. 2ND brake piston

54. D-ring

55. 2ND brake retainer

56. Snap ring

57. Low & reverse planetary gear set

58. Snap ring

59. Reverse sun gear

60. Thrust bearing

61. Overdrive(O/D) hub

62. Thrust bearing

63. Reverse & Overdrive(O/D) clutch

64. Thrust bearing

65. Rear cover

66. Rear cover bolt

67. One way clutch inner race

68. Low&reverse brake plate

69. Transmission case
