1. PCV valve
2. Canister
3. Purge control solenoid valve (PCSV)
4. Catalytic converter (WCC)
4. Catalytic converter (UCC)
5. Fuel tank air filter

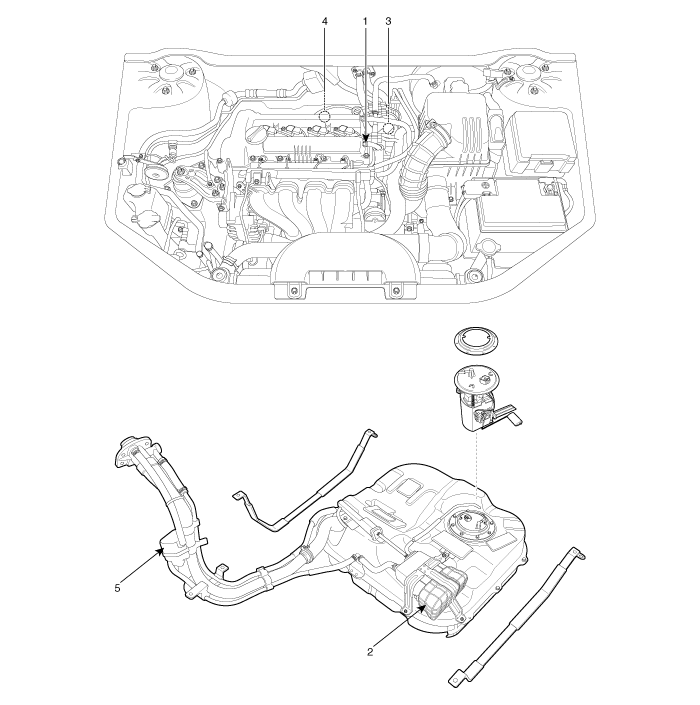

1. PCV valve 2. Canister 3. Purge control solenoid valve (PCSV) | 4. Catalytic converter (MCC+UCC) 5. Fuel tank air filter |
1. PCV valve | 2. Canister |
| |
3. Purge control solenoid valve (PCSV) | 4. Catalytic converter (WCC) |
| |
4. Catalytic converter (UCC) | 5. Fuel tank air filter |
| |

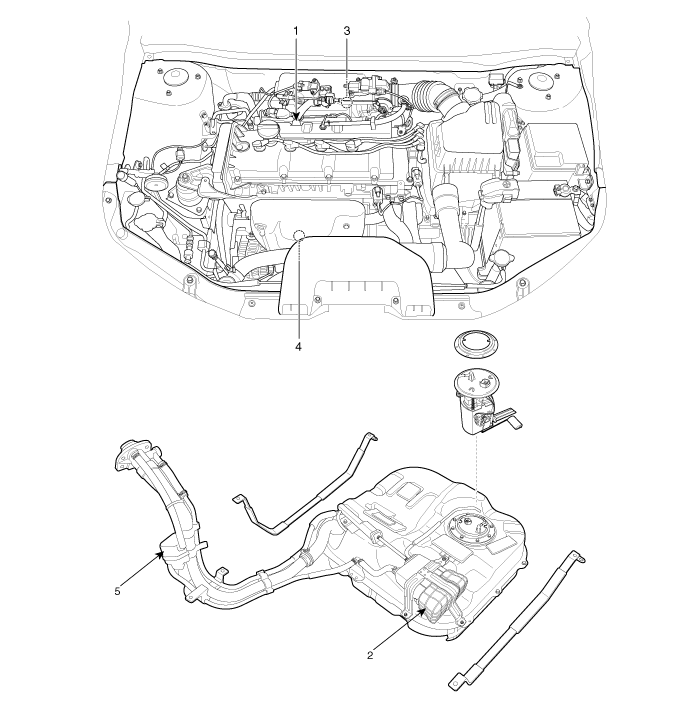

1. PCV valve 2. Canister 3. Purge control solenoid valve (PCSV) | 4. Catalytic converter (MCC) 5. Fuel tank air filter |
1. PCV valve | 2. Canister |
 | |
3. Purge control solenoid valve (PCSV) | 4. Catalytic converter (MCC) |
 |  |
5. Fuel tank air filter | |
|
