4.
Accelerate the Engine speed until about 2000 rpm in the 5th gear
Specification : INPUT SPEED - (OUTPUT SPEED × 5th GEAR RATIO) ≥ 200 RPM
※ It is difficult to do "STALL TEST" in 5th gear, so that Go to "signal check" procedure.
Shifting Position | Input clutch | High&Low ReverseClutch | Direct Clutch | Reverse Brake | Front Brake | Low Coast Brake | Forward Brake | 1st OwnWay Clutch | Forward OwnWay Clutch | 3rd OwnWay Clutch | |
P | ▲ | ▲ | |||||||||
R | ● | ● | ● | ● | ● | ||||||
N | ▲ | ▲ | |||||||||
D | 1st gear | ★ | ▲ | ★ | ● | ● | ● | ● | |||
2nd gear | ● | ▲ | ● | ● | ● | ||||||
3rd gear | ● | ● | ● | ▲ | ◆ | ● | |||||
4th gear | ● | ● | ● | ▲ | ◆ | ||||||
5th gear | ● | ● | ● | ▲ | ◆ | ◆ | |||||
● : WORKING.
◆ : PARTICIPATE IN DELIVERY TORQUE WHEN COAST DRIVING.
▲ : SUPPLING OIL PRESSURE TO ELEMENT, BUT NOT EFFECT ON OUTPUT.
★ : TEMPORARY WORKING.
Connect Scantool.
Engine "ON" .

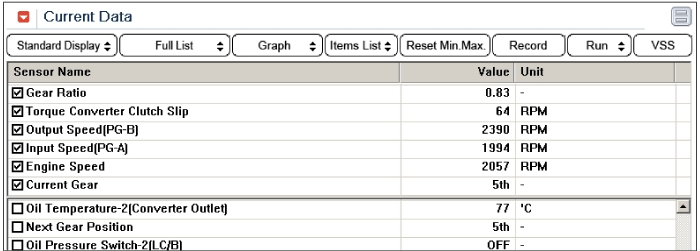

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.
Accelerate the Engine speed until about 2000 rpm in the 5th gear
Specification : INPUT SPEED - (OUTPUT SPEED × 5th GEAR RATIO) ≥ 200 RPM
Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
 | ▶ Go to "Component Inspection" procedure. |
 | ▶ Check for electrical niose of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and Go to "verification of vehicle repair" procedure. |
