Move selector lever from "P" range to "D" range.
Fig 1) P range
Fig 2) R range

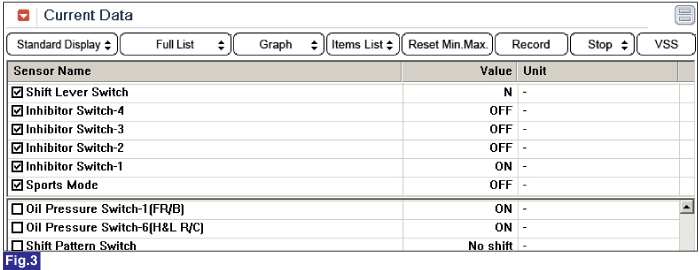

Fig 3) N range
Fig 4) D range
Connect scantool to data link connector(DLC).
Ignition "ON" & Engine "OFF".
Monitor the "TRANSMISSION RANGE SWITCH" parameter on the scantool.
Move selector lever from "P" range to "D" range.
Fig 1) P range
Fig 2) R range
Fig 3) N range
Fig 4) D range
Does "TRANSMISSION RANGE SWITCH" follow the reference data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure. |
 | ▶ Go to "W/Harness Inspection" procedure. |
