4.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition" table).
Connect GDS.
IG "ON" and engine "OFF".

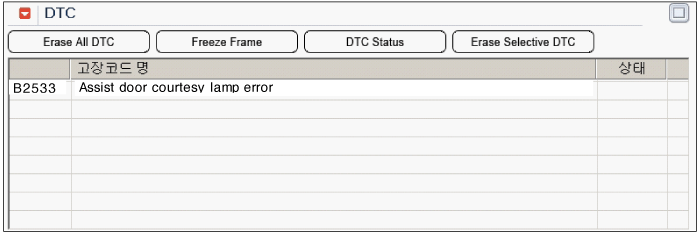

Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition" table).
Is the same DTC occurred again?
 | ▶ Go to next procedure. |
 | ▶ Fault is intermittent caused by poor contact in the components and/or ADM's connector or was repaired and ADM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
Connect GDS
IG "ON" & ENG "OFF"

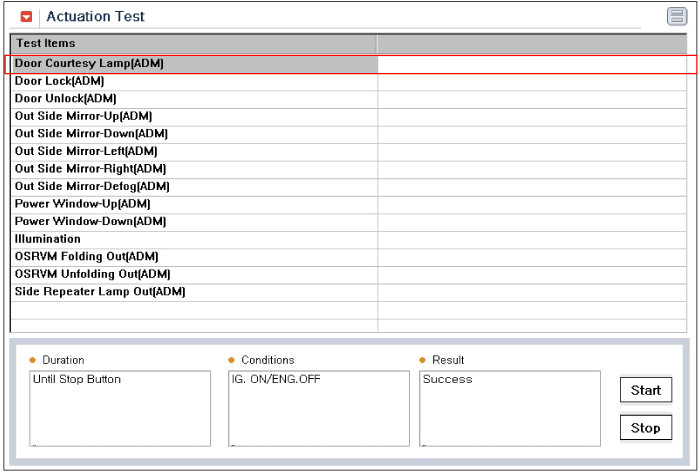

Select "Actuation Test" mode.
Execute "Assist door courtesy lamp" test
Specification : ON or OFF
Is the service data normal ?
| ▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Terminal and Connector Inspection" procedure. |
