Monitor GDS Data
1.

Connect GDS with "DATA LINK CONNECTOR"(DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn all the electrical devices including air conditioner OFF.

4.

Monitor "BOOST PRESSURE SENSOR" parameter on the GDS.

Specification : 1050hpa ± 200hpa at idle.

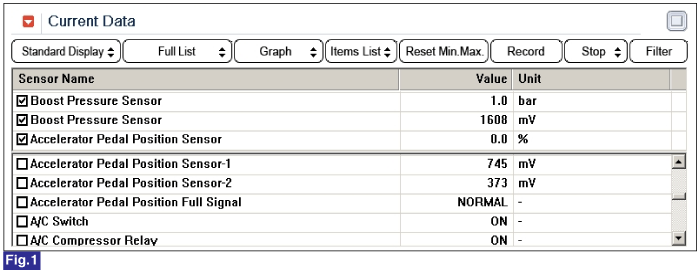

Fig.1) Monitor "BOOST PRESSURE SENSOR" parameter on the GDS at idle after warming engine up.

☞ 850hpa ~ 1250hpa(approx. 1 atm) is correct value.

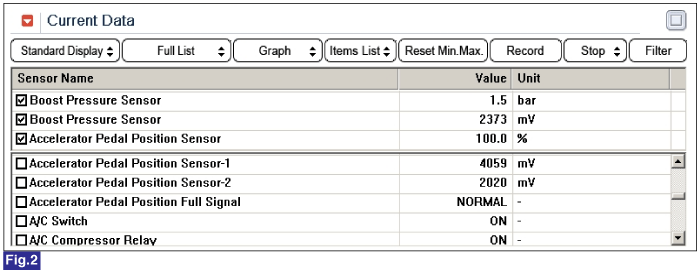

Fig.2) Monitor "BOOST PRESSURE SENSOR" parameter on the scan tool at wide open thorttle status.
