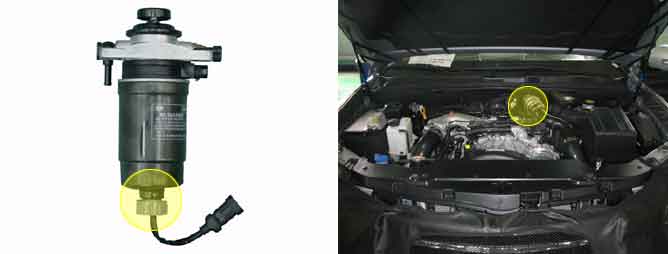

Diesel fuel filter can separate water from fuel. If water more than specified amount is detected by "water in fuel sensor" installed at the bottom of fuel filter, "Fuel warning lamp" on cluster turns ON. Especially for high pressure pump and injectors of common rail diesel engine water is fatal. because water causes poor lubrication and corrosion in such accurate devices, furthermore, it leads engine hesitation. In order to prevent this harsh condition to engine, "Water warning lamp" turns ON to let driver relief the gathered water from the filter and engine power generation is limited .

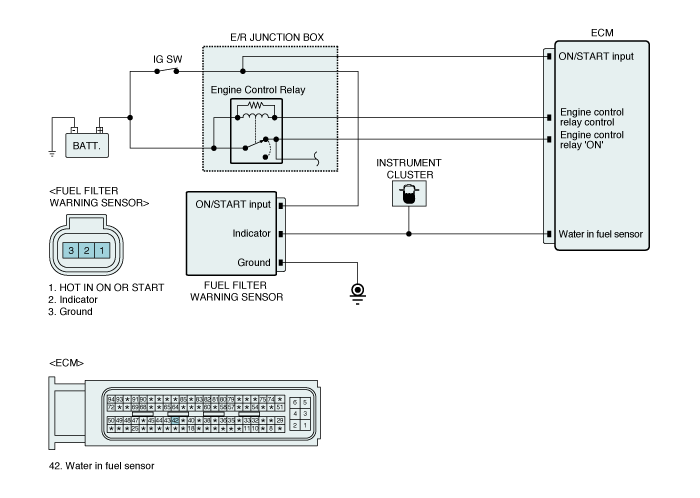

If sensing prove of water in fuel sensor contacts with water, impressed voltage on prove is grounded to chassis ground, then 12V is outputted from signal line. With this method, ECM recognizes the amount of water.
P2264 is set when water in fuel sensor operates for more than 4 sec. Water warning lamp turns on and engine power generation is limited in this condition. When this code is set, water in the filter should be removed to prevent engine from water contained fuel. If same code is set even after removing water, check short to battery in water in fuel sensor signal circuit or component failure.
Item | Detecting Condition | Possible Cause | ||
DTC Strategy |
•
Voltage monitoring |
•
Water stored inside of fuel filter (remove water inside of filter)
•
Water sensor circuit (short to battery)
•
Water sensor component | ||
Enable Conditions |
•
IG key ON | |||
Threshold Value |
•
Signal voltage detected at water sensor. | |||
Diagnostic Time |
•
4.0 sec. | |||
Fail Safe | Fuel cut | NO |
•
Water warning lamp turns ON. | |
EGR Off | NO | |||
Fuel Limit | YES | |||
Check Lamp | OFF | |||
Water warning capacity | 53 ~ 63 cc |
