4.
Drive the vehicle.
Fig 1) Input speed sensor signal while driving
The input(turbine) speed sensor outputs pulse-signals according to the revolutions of the input shaft of the transmission. The TCM determines the input shaft speed by counting the frequency of the pulses. This value is mainly used to control the optimum fluid pressure during shifting.
TCM set this code If detected short to battery, open, short to ground in this circuit.(MIL ON : 2 driving Cycle)
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Check signal range | ● Faulty in Mechatronics (Valve-body + TCM) |
Enable Conditions | ● Sensor supply power : normal | |
Threshold Value | ● Circuit malfunction | |
Diagnostic Time | ● 0.6 second | |
Fail Safe | ● Keep the persent gear status ● Fixed at 3rd gear ● Maximum line pressure control(D : 14kg/㎠, R : 20kg/㎠) ● Torque convertor clutch : OFF ● No learning control (priority : 3) |
The function with the higher priority will aiways take precedence. However, a low-priority is not overruled by a higher priority function.
Functions from different priority categories can also run in parallel. It is important to note which function will take precedence in this case.
In such an event it is possible for a substitute function with low priority not be carried out if a second, higher-priority function is present. This has been taken into account when compiling the priority list and is international.
The mechanical emergency run function must always have the highest priority, since from the electrical standpoint it is the only safe condition.

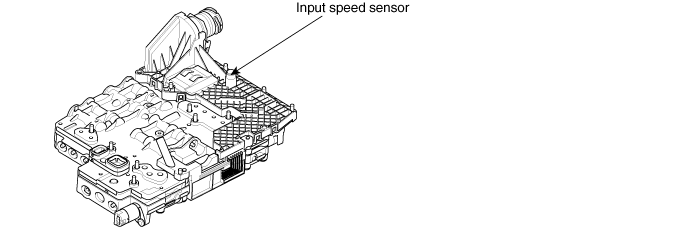

Fig 1) Input speed sensor
Connect scantool to data link connector(DLC).
Engine "ON".
Monitor the "INPUT SPEED SENSOR" parameter on the scan tool.
Drive the vehicle.
Fig 1) Input speed sensor signal while driving
Is "Input speed sensor" output value within normal range ?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure. |
 | ▶ Go to "Component Inspection" procedure. |
Ignition "ON" & Engine "OFF".
Connect scantool and check DTC.
Erase the DTC with scantool.
After turning IG OFF to IG ON twice or three times, check DTC again.
Does the scantool show same DTC again ?
| ▶ Substitute with a known-good Mechatronics (Valve-body + TCM) and check for proper operation. If the problem is corrected,replace Mechatronics (Valve-body + TCM) and then go to "Verification of Vehicle Repair" procedure. |
| ▶ Fault is intermittent caused by poor contact in the sensor’s and/or PCM’s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure. |
How to perform Initial Learning
If you replace the automatic transmission or Mechatronics (Valve-body + TCM), or if you overwrite the TCU software, be sure to initialize the learned values and perform initial learning.
Step 1) Warm-up
Raise the ATF temperature by leaving the vehicle idling or performing city drive. Check the ATF temperature using the Scan-tool and make sure it is between 50°C( 122 °F) and 120°C( 248 °F). If the ATF temperature is outside this range, work to bring the range.
Don't raise the oil temperature by stalling the engine.
(Reference)
If the oil temperature is not between 50°C( 122 °F) and 120°C ( 248 °F), initial learning can not be performed. Before learning, check for variable speed shock or shift shock.
STEP 2) Driving learning
Select "D" range then depress accelerator pedal smoothly, and keep the APS value 17%, shift gear to 5th gear.
RKeep the vehicle speed over 60kM/h.
In condition that release the accelerator pedal and then depress the brake pedal narmally.Stop the vehicle then keep 5seconds.
STEP 3) Repeat this procedure 10 times.(Not necessary N-D,N-R Learning)
After a repair, it is essential to verify that the fault has been corrected.
Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
Using a scan tool, Clear DTC.
Operate the vehicle within DTC Enable conditions in General information.
Are any DTCs present ?
| ▶ Go to the applicable troubleshooting procedure. |
| ▶ System performing to specification at this time. |
