4.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition" table).

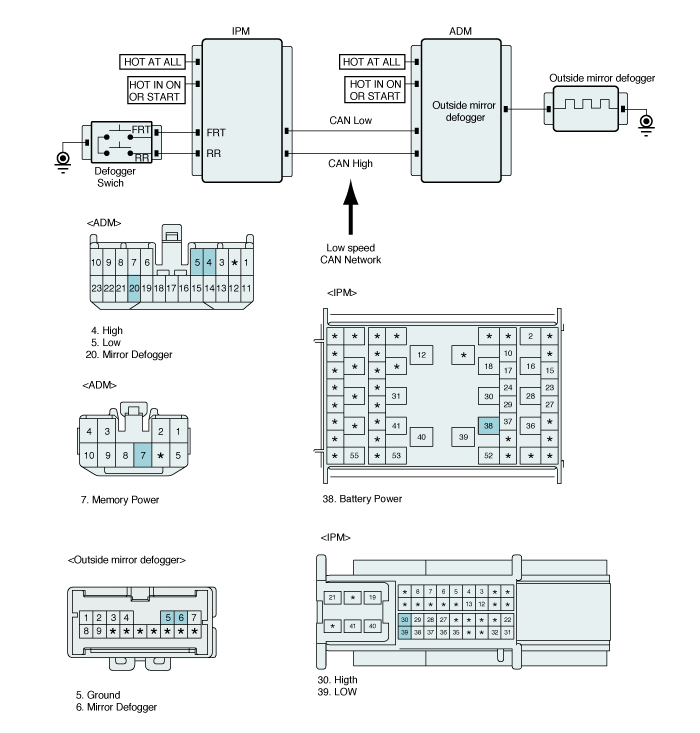

If operating the Rear Glass Defog SW, its signal goes to IPM at first and its signal goes to ADM, through the CAN communication. ADM controls Defog Relay to get rid of defog on the rear glass with this signal.
ADM sets DTC when ADM detects open circuit in Assist outside Rear View Mirror
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Open circuit in defog of Assist outside rear view mirror | ● Open circuit in defog of Assist outside rear view mirror ● Faulty Defog in Assist outside rear view mirror |
Enable Conditions | ● Not in START position with IGN Key ● 200mS after START position with IGN Key ● Defogging works on | |
Threshold Value | ● Current is lower than 150mA | |
Diagnostic Time | ● Immediately (DTC status memorized) | |
DTC Erasing Time | ● DTC is erased immediately after trouble fixed (In case of the past error, perform DTC erasing procedure.) ● Disconnecting battery cable |
Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition" table).
Is the same DTC occurred again?
 | ▶ Go to next procedure. |
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or ADM's connector or was repaired and ADM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
Connect GDS
IG "ON" & ENG "OFF"
Select "Actuation Test" mode.
Execute "Assist rear view mirror" test
Specification : ON or OFFF
Is the Defog in Assist rear view Mirror normal ?
| ▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Terminal and Connector Inspection" procedure. |
Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
| ▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to 'Power Circuit Inspection' procedure. |
IG "ON" & ENG "ON"
Make ON status with turning ON the defog switch for outside rear view mirror of Driver side.
Check voltage between signal terminal of outside rear view of Driver side goes to ADM and chassis ground.
Specification : About 12 V
Is the measured value within specification ?
| ▶ Substitute with a known - good ADM and check for proper operation. If the problem is corrected, replace the ADM and go to "Verification of Vehicle Repair" procedure. |
| ▶ Check fuse is blown off, defog of outside rear view mirror for driver and open or short in signal circuit of outside rear view mirror for driver side. And then, repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
After a repair, it is essential to verify that the fault has been corrected.
Connect scan tool and select "DTC Analysis" mode.
Clear the DTCs and Operate the vehicle within DTC Enable conditions in General information.
Is any DTC outputted again?
| ▶ Go to the applicable troubleshooting procedure.. |
| ▶ System performing to specification at this time. |
