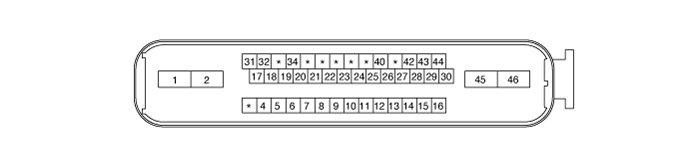

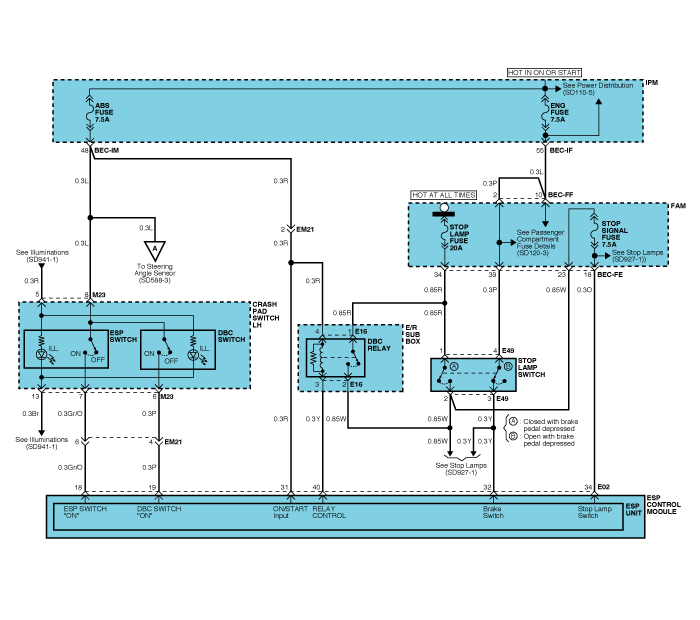

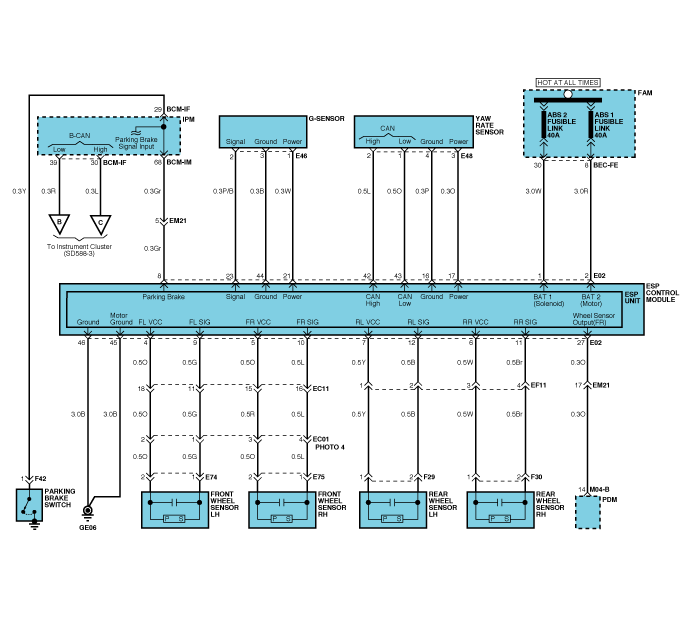

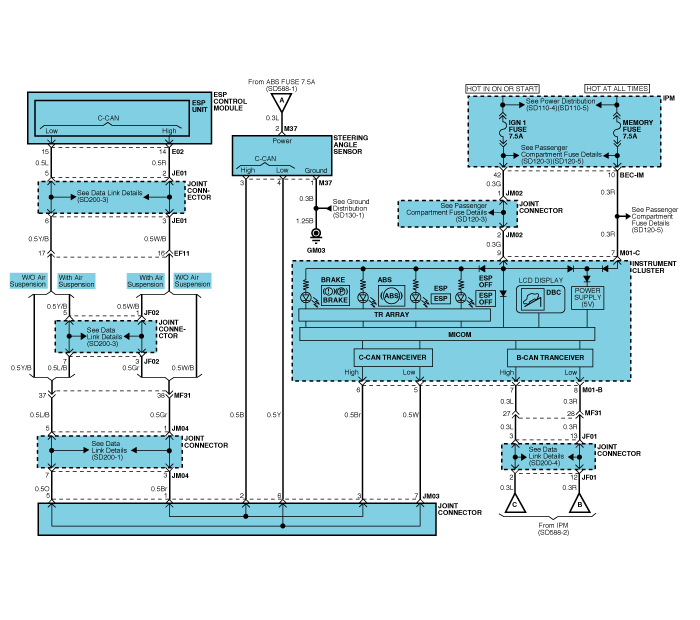

Connector Terminal | Specification | Remark | |
No | Description | ||
31 | IGNITION1(+) | Over voltage range : 17 ± 0.5V Operating voltage range : 9.5 ± 0.5V ＜ V ＜ 17 ± 0.5V Low voltage range : 7.0 ± 0.5V ＜ V ＜ 9.5 ± 0.5V Max. current : I ＜ 500mA | |
1 | POS.BATTERY.(SOLENOID) | Max leakage current : I ＜ 0.8mA Operating voltage range : 9.5 ± 0.5V ＜ V ＜ 17 ± 0.5V Max. current : I ＜ 40A | |
2 | POS.BATTERY.(MOTOR) | Operating voltage range: 9.5 ± 0.5V ＜ V ＜ 16.5 ± 0.5V Rush current : I ＜ 100A Max current : I ＜ 40A Max leakage current : I ＜ 0.2mA | |
46 | GROUND | Rated current : I ＜500mA Max. current: I ＜ 30A | |
45 | PUMP MOTOR GROUND | Rush current : I ＜ 100A Max current : I ＜ 30A | |
16 | YAW ＆ LATERAL G SENSOR GROUND | Rated current : I ＜150mA | |
17 | YAW SENSOR POWER | Max Output current : I ＜ 150mA Max Output voltage : V(IGN) ± 1V | |
34 | BRAKE LIGHT SWITCH | Input voltage (Low) : 0V ≤ V ≤ 3.0V Input voltage (High) : 7.0V ≤ V ≤ 16.0V | |
32 | BRAKE SWITCH | ||
8 | PARKING BRAKE SWITCH | Input voltage (Low) : 0V ≤ V_Low ≤ 3.0V Input voltage (High) : 7.0V ≤ V_High ≤ 16.0V Max input current : I ＜ 10mA | |
27 | SENSOR FRONT RIGHT OUTPUT | Max current : I ＜ 16mA External pull up resistance :1 KΩ ＜ R Output duty :50 ± 20% | |
18 | ESP ON/OFF SWITCH | Input voltage (Low) :0V ≤ V ≤ 3.0V Input voltage (High) : 7.0V ≤ V ≤ 16.0V Max input current:I :＜10mA | |
15 | CAN BUS LINE(LOW) | ||
14 | CAN BUS LINE(HIGH) | ||
4 | SENSOR FRONT LEFT POWER | Output voltage : IGN (V) ± 1V Output current : Max 30mA | |
5 | SENSOR FRONT RIGHT POWER | ||
7 | SENSOR REAR LEFT POWER | ||
6 | SENSOR REAR RIGHT POWER | ||
9 | SENSOR FRONT LEFT SIGNAL | Input current LOW : 5.9 ~ 8.4mA Input current HIGH :11.8 ~ 16.8mA Frequency range :1 ~ 2500Hz Input duty : 50 ± 20% | |
10 | SENSOR FRONT RIGHT SIGNAL | ||
12 | SENSOR REAR LEFT SIGNAL | ||
11 | SENSOR REAR RIGHT SIGNAL | ||
44 | G SENSOR GROUND (4WD Only) | - Rated current : I ＜ 10mA | |
21 | G SENSOR POWER (4WD Only) | - Max output current : I ＜ 10mA - Max output voltage : 4.75V ≤ V ≤ 5.25V | |
23 | G SENSOR SIGNAL (4WD Only) | - Input voltage : 0V ≤ V ≤ 5.0V - Zero offset voltage : 2.5 ± 0.1V | |
19 | DBC SWITCH | Input voltage (Low) : 0V ≤ V ≤ 3.0V Input voltage (High) : 7.0V ≤ V ≤ 16.0V Max input current : I＜10mA | |
40 | DBC RELAY | Max current : I ＜ 180mA Max output Low voltage : V ＜ 0.5V | |
42 | SENSOR CAN BUS LINE (High) | ||
43 | SENSOR CAN BUS LINE (Low) | ||
