1.

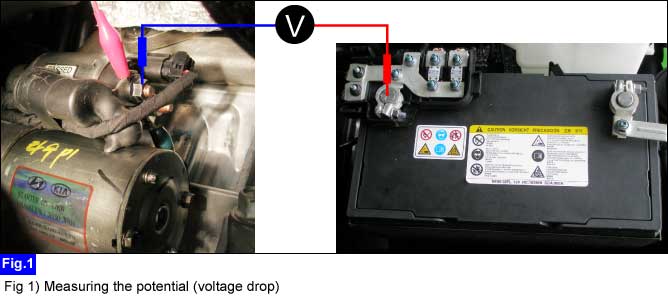

Measure the potential (voltage drop) between "STARTER" 'B' terminal and "BATTERY" (+) terminal at IG key "START".
■ Reference value : Below 500 ㎷
● (+) probe → "BATTERY" (+) terminal
● (-) probe → "STARTER" 'B' terminal
Measure the potential (voltage drop) between "STARTER" 'B' terminal and "BATTERY" (+) terminal at IG key "START".
■ Reference value : Below 500 ㎷
● (+) probe → "BATTERY" (+) terminal
● (-) probe → "STARTER" 'B' terminal
Is measured potential (voltage drop) within specification?
 | ▶ Go to "Starter chassis ground inspection" procedure as below. |
 | ▶ Repair open/poor connection between "BATTERY" (+) terminal and "STARTER" 'B' terminal. |

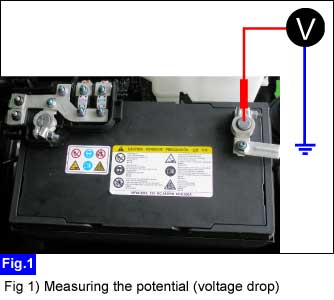

Measure the potential (voltage drop) between "BATTERY" (-) terminal and chassis ground at IG key "START".
■ Reference value : Below 500 ㎷
● (+) probe → "BATTERY" (-) terminal
● (-) probe → Chassis ground
Is measured potential (voltage drop) within specification?
| ▶ Check engine stuck rotating engine crank shaft. ▶ Check poor connection of "STARTER". ▶ Repair or replace the starter. |
| ▶ Repair open/poor connection between "BATTERY" (-) terminal and chassis ground. |
