3.
Measure the voltage between "ST" terminal of "STARTER" and battery (-) terminal.
■ Specification : B+
Remove "START RELAY #1" and "ST" terminal of "STARTER".

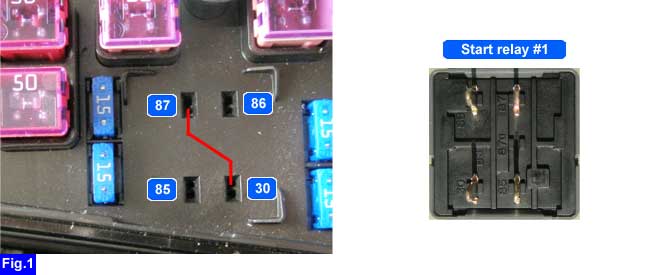

Connect jump wire directly to switch terminals of "START RELAY #1" on the "FAM".

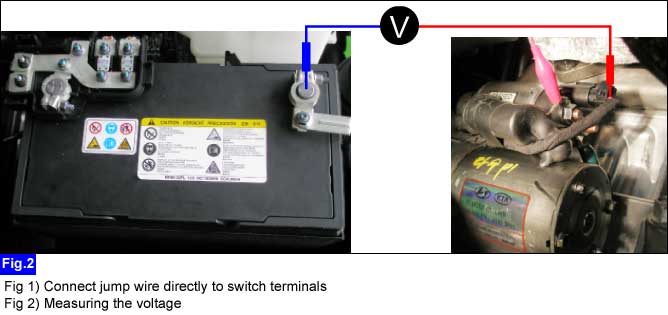

Measure the voltage between "ST" terminal of "STARTER" and battery (-) terminal.
■ Specification : B+
Is measured voltage within the specification?
 | ▶ There are possible causes as below. Click on each item for more details. "Start relay", "Immobilizer" |
 | ▶ Repair open/poor connection between "ST power supply" terminal of "START RELAY #1" on the "FAM" and "ST" terminal of the "STARTER". |
