Description

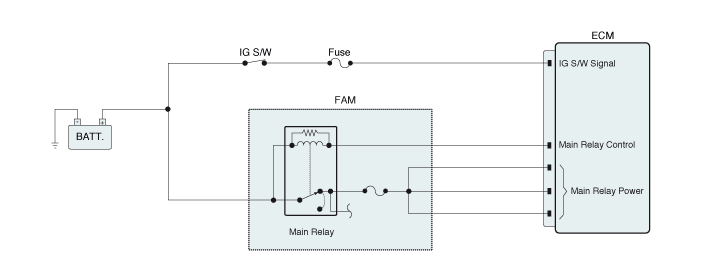

If IG key 'ON' signal is input, Main relay (Engine control relay) is operated at the same time by ECM. If IG key 'OFF' signal is input, injector working is stopped by ECM and Main relay is to be 'OFF' after few seconds.

Inspect that the cause of engine stalls is IG KEY 'ON' signal or not.

Diagnostic Procedure
IG key "ON" power inspection
1.

Inspect fuse blown related to ignition switch power.

Symptom

Inspection procedure

Case1

● Fuse is normal and IG power is supplied normally.

● Go to "Next step" as below.

Case2

● Fuse is blown.

● Repair short to ground in ignition power switch circuit.

2.

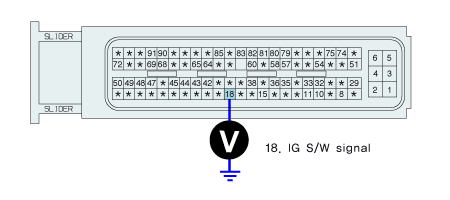

Check voltage between ignition power supply (IG switch signal) terminal of ECM harness connector and chassis ground.

☞ IG key "ON" : IG power is supplied (11.5V~13.0V)

☞ IG key "OFF" : IG power is NOT supplied (below 2.0V)

Symptom

Inspection procedure

Case1

● Ignition power supply (IG switch signal) is input normally according to IG key "ON", "OFF".

● Go to "Main relay circuit inspection"

Case2

● Ignition power supply (IG switch signal) is NOT supplied at IG KEY "ON".

● Repair open in ignition power supply (IG switch signal) circuit.
