1.

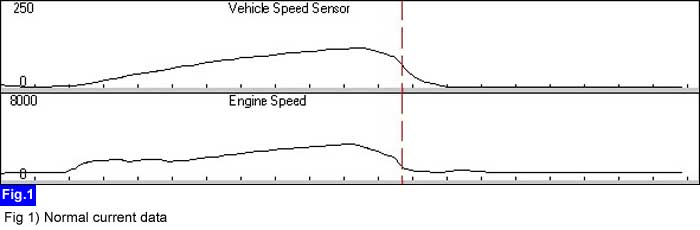

Monitor "Vehicle Speed Sensor" current data after engine warming up.
■ Reference current data
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Monitor "Vehicle Speed Sensor" current data after engine warming up.
■ Reference current data
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Is "Vehicle Speed Sensor" current data normal?
 | ▶ There are possible causes as below. Click on each item for more details. "Ignition coil circuit", "ETC", "Damper clutch" |
 | ▶ Go to "ABS current data inspection" procedure as below. ☞ If vehicle speed sensor current data is abnormal, Inspect ABS system. Because wheel sensor signal input to ABS module and ABS module sends this signal to ECM (PCM). |

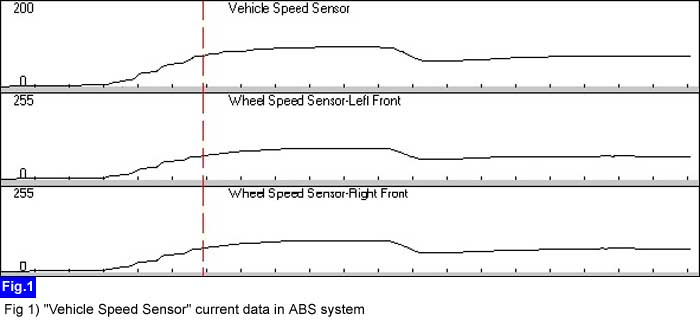

Monitor "Vehicle Speed Sensor" current data in the ABS system.
If ABS DTC is displayed while driving on lift, erase DTC by using GDS.
■ Reference current data
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Is "Vehicle Speed Sensor" current data normal?
| ▶ Repair open/poor connection between ECM harness connector and ABS ECM harness connector. |
| ▶ Repair or replace the wheel speed sensor/the ABS ECM. |
