1.

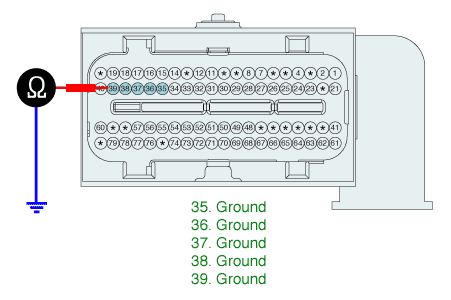

Measure the resistance between "ground" terminal(CLG-B) of the ECM harness connector and chassis ground after disconnecting ECM connector at IG key "OFF".
■ Specification : Below 0.8 Ω
Measure the resistance between "ground" terminal(CLG-B) of the ECM harness connector and chassis ground after disconnecting ECM connector at IG key "OFF".
■ Specification : Below 0.8 Ω
Is measured resistance within the specification?
 | ▶ Repair the ECM. |
 | ▶ Repair open/poor connection between "ground" terminal of the "ECM" harness connector and chassis ground. |
