Hold the injector with hand and check the operation of the injector while starting.

Is the injector operated normally?

	▶ Go to "Injector leakage inspection" procedure as below.
	▶ Go to "Injector resistance inspection" procedure as below. ▶ Click on "Injector circuit" item for more details.

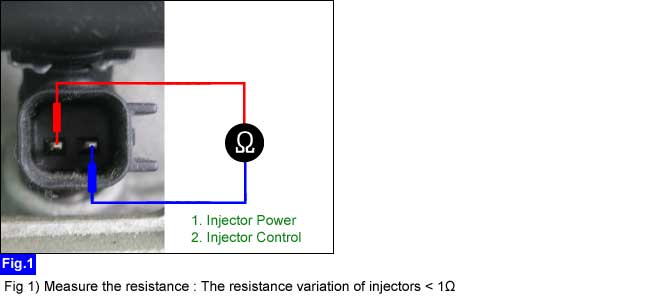

Measure resistance between "Power" terminal and "Injector Control" terminal of the "INJECTOR" after disconnecting "INJECTOR" connector.

Is the injector resistance within specification ?

	▶ Go to "Injector leakage inspection" procedure as below.
	▶ Replace the injector.

Remove injector and delivery pipe assembly.

Check fuel leakage from injector while "Fuel pump" actuation test function on the GDS.

Is there fuel leakage from injector?

	▶ Replace the injector.
	▶ Click on "Injector Coil Circuit" item for more details.
