2.

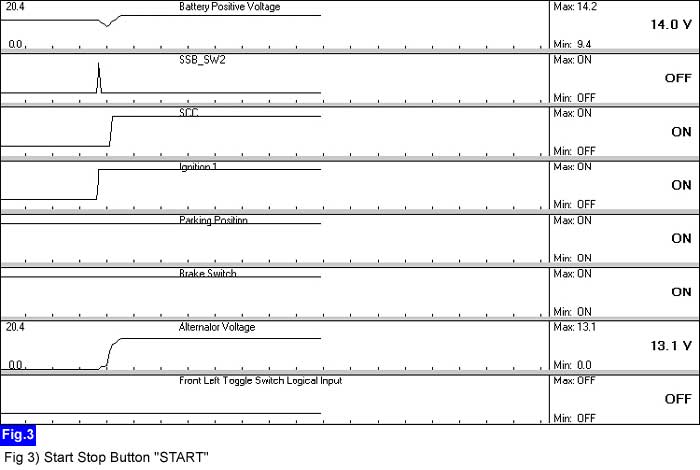

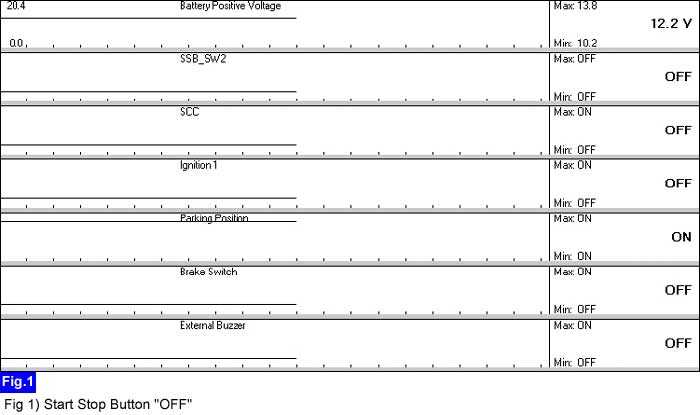

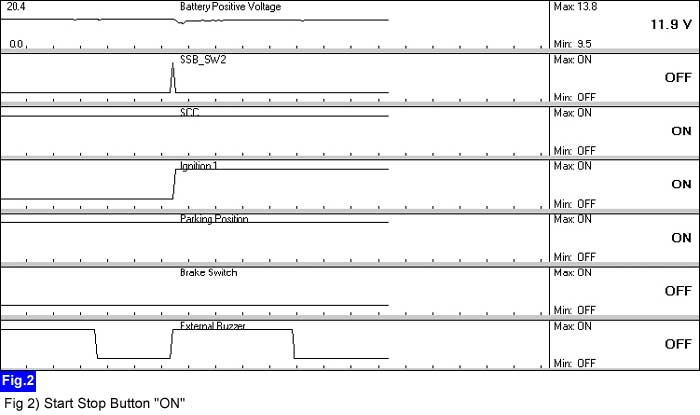

Monitor signal "OFF" → "ON" when SSB(Start Stop Button) is operated.
■ Specification : refer to as below
If engine does not start with blinking immobilizer indicator lamp, Monitor SMK current data at IG key "OFF".
Monitor signal "OFF" → "ON" when SSB(Start Stop Button) is operated.
■ Specification : refer to as below
Is current data normal?
 | ▶ Check for battery of the FOB key. |
 | ▶ Check for "Start Stop Button" ▶ Check for "PDM" ▶ If GDS can NOT communication, Check for diagnostic communication line. |
