2.

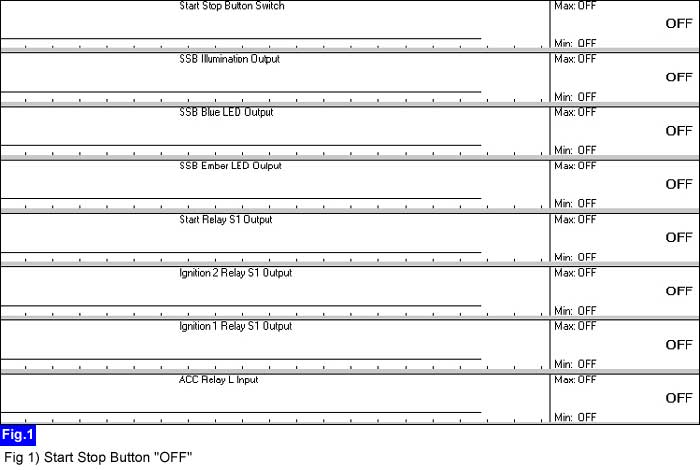

Monitor signal "OFF" → "ON" when SSB(Start Stop Button) is operated.
■ Specification : refer to as below
If engine does not start with blinking immobilizer indicator lamp, Monitor PDM current data at IG key "OFF".

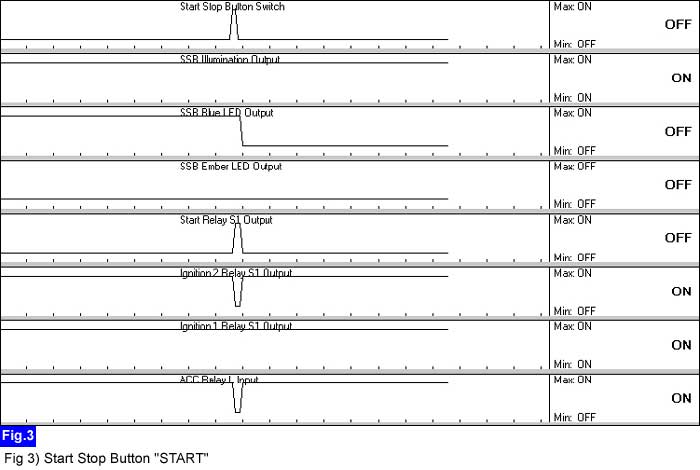

Monitor signal "OFF" → "ON" when SSB(Start Stop Button) is operated.
■ Specification : refer to as below
Is current data normal when SSB(Start Stop Button) is operated?
 | ▶ Check for "Brake ON/OFF" signal. ▶ Check for "P position" signal. |
 | ▶ Check for fuse and circuit of "Start Stop Button". ▶ Check for open/short between "Start Stop Button" harness connector and terminal "6"(M04) of the PDM harness connector. ▶ Check for "SMK" and "CAN communication line" ▶ Check for "PDM" |
