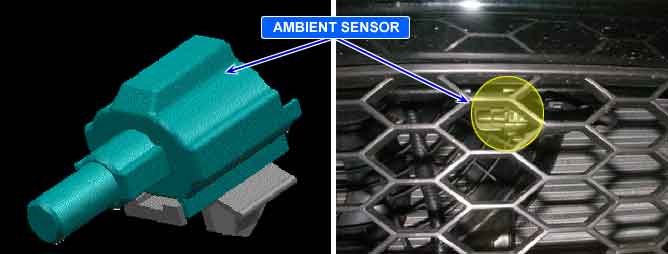

The Ambient Temperature sensor is a negative temperature coefficient thermistor that is located at the center stay of the condenser. The Ambient Temperature Sensor signal is used by the A/C ECU when making calculations related to blower motor, temperature, and mode door calculations.
Air conditioner Control Module sets DTC B1237 if Ambient sensor has been detected below 0.1V for 4 seconds.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Voltage check |
•
Short in signal circuit
•
Faulty Ambient Sensor
•
Faulty A/C control Module |
Enable Conditions |
•
IG KEY ON | |
Threshold value |
•
Ambient sensor has been dtected 0.1V for 4 seconds. | |
Failsafe |
•
Displayed '--' and A/C control Module regards and controls it as 20℃(68℉) |
Temperature(℃/℉) | Resistance(㏀) | Temperature(℃/℉) | Resistance(㏀) |
-20/-4 | 271.4 | 50/122 | 11 |
0/32 | 95.1 | 70/158 | 7.58 |
25/77 | 30 |
