4.
Execute "Tilt Steering Column (UP, DOWN)" test.
Specification : Turned to pressed direction
Connect scantool
IG "ON" & ENG "OFF"

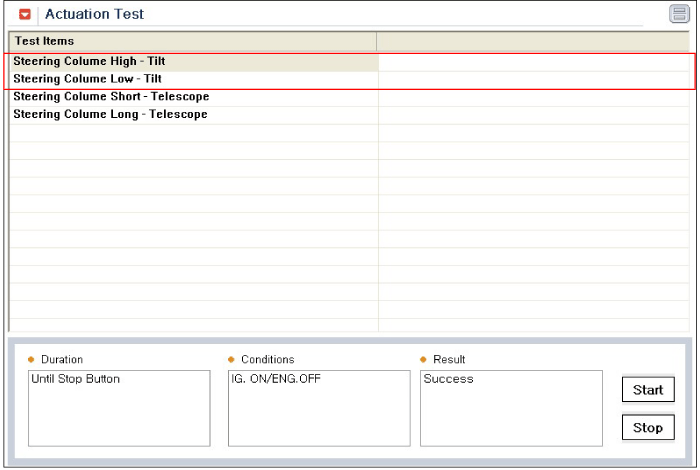

Select "Actuation Test" mode.
Execute "Tilt Steering Column (UP, DOWN)" test.
Specification : Turned to pressed direction
Is motor working normal ?
 | ▶ Go to "W/Harness Inspection" procedure. |
 | ▶ Go to next procedure. |
IG "ON" & ENG "OFF"

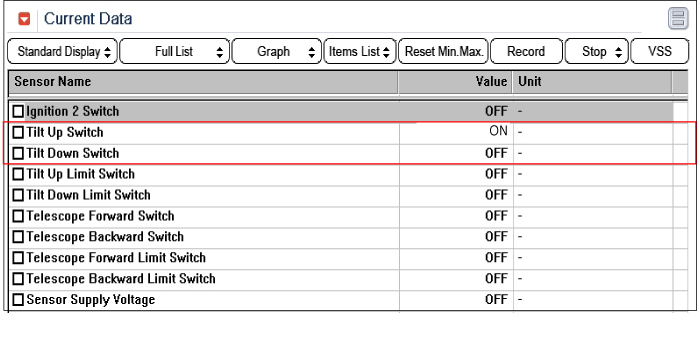

After connect GDS, select "Current Date" menu.
Check whether "Tilt (UP,DOWN) Switch" is turned to "ON" when the control switch is pressed. (UP, DOWN)
Specification : Service data is switched. (ON ↔ OFF)
Is the service data normal?
| ▶ Go to "Terminal and Connector Inspection" procedure. |
| ▶ Substitute with a known - good component and check for proper operation. If the problem is corrected, replace the component and go to "Verification of Vehicle Repair" procedure. |
